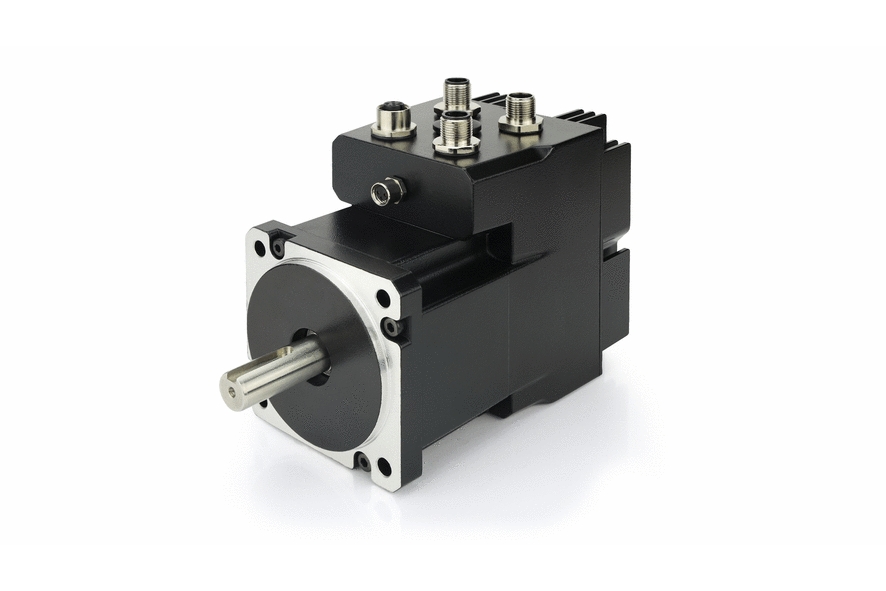

PD6-EB80CD-E-65-5 –  Brushless DC motor with integrated controller IP65 – 80mm

Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure
You can configure this article with others. Please click the configure button below to start.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (10)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)
Shaft modification Shaft modification (2)

Technical Data

  • Size
  • Fieldbus Modbus RTU
  • Operating Voltage 12 VDC - 57.6 VDC
  • Rated Torque
  • Rated Current (RMS) 25 A
  • Number of Digital Inputs 6
  • Number of Analog Inputs 1
  • Number of Digital Outputs 2
  • Encoder
  • Encoder Resolution 1024 CPR
  • Weight
  • NEMA -
  • Interface USB
  • Rated Power 940 W
  • Rated Speed 3000 rpm
  • Peak Current (RMS) 75 A
  • Type of Digital Inputs 5/24 V switchable
  • Type of Analog Input 0 - 20 mA / 0 - 10 V switchable
  • Type of Digital Output open-drain (max. 24 V/100 mA)
  • Encoder Type single-turn absolute
  • Length

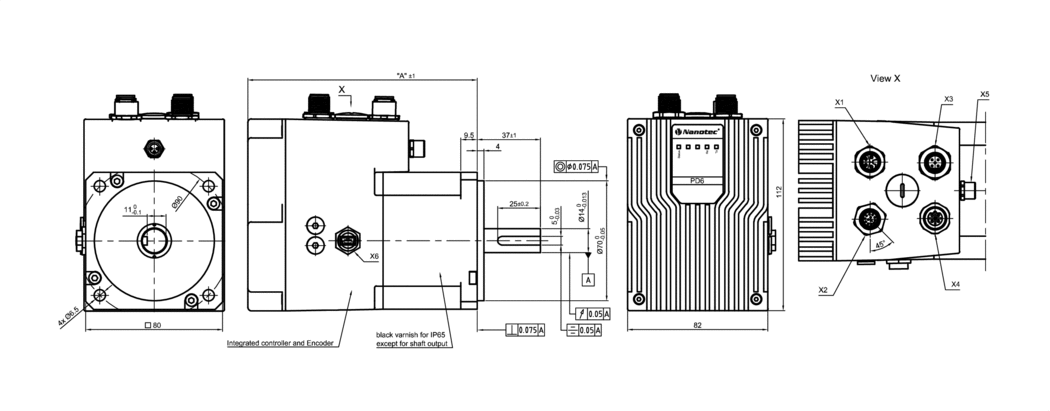

Dimensions

PD6-EB80xD-x-65-5
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Manuals
Software
Certificates

Accessories

ZK-M12-4-2M-1-LFF Power Straight 2m
ZK-M12-4-2M-2-LFF Power Angled 2m
ZK-M12-4-5M-1-LFF Power Straight 5m
ZK-M12-4-5M-2-LFF Power Angled 5m
ZK-M12-12-2M-1-AFF IO Straight 2m
ZC-M12-4-M-B-MBR-TR M12 Terminating resistor Modbus RTU
ZK-M12-5-2M-1-B-S Modbus RTU in Straight 2m
ZK-M12-5-2M-2-B-S Modbus RTU in Angled 2m
ZK-M12-5-2M-1-BMM Modbus RTU out Straight 2m
ZK-M12-5-2M-2-BMM Modbus RTU out Angled 2m
ZK-M8F2-M8M1-3-138-S Brake cable BCD
ZK-M8-3-2M-1-AMM Brake out Straight 2m
ZK-M8-3-2M-2-AMM Brake out Angled 2m
Z-K10000/100 Capacitor
BC72-50 Brake chopper
ZK-USB Mini USB cable, 1.5m
