Damper

Damper

The D28, D40 and D56 dampers from Nanotec can be mounted on all stepper motors with a double shaft (size 28-59 mm). Apart from the improved settling time, system resonance is suppressed and vibration and motor noise in the lower speed range are greatly reduced.

In case of device-specific resonance and noise problems, putting the motor into operation is made considerably easier by using a damper

Damper  –  Products

Damper

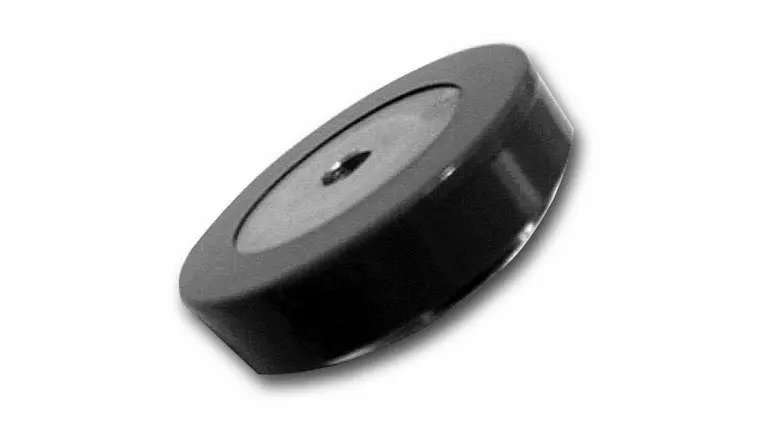

Damper – For B shaft

The D28, D40 and D56 dampers can be mounted on all stepper motors with a double shaft (size 28-59 mm).  Apart from the improved settling time, system resonance is suppressed and vibration and…
  • Corresponding Motors ST28, ST35, ST41, ST42, ST59
  • Suitable for (Damper) for B-Shaft
Damper

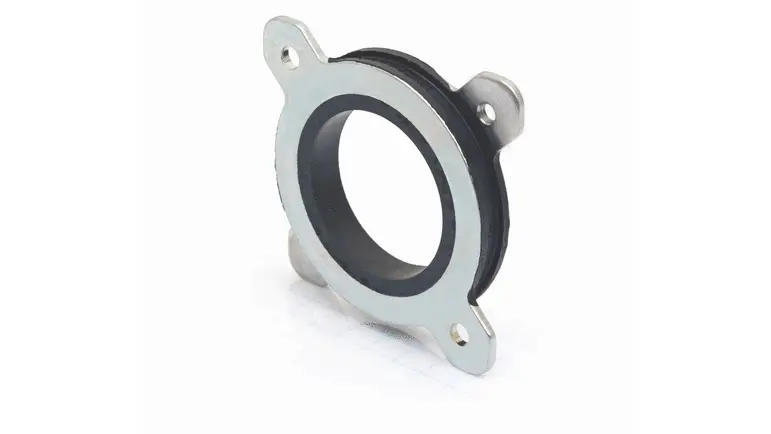

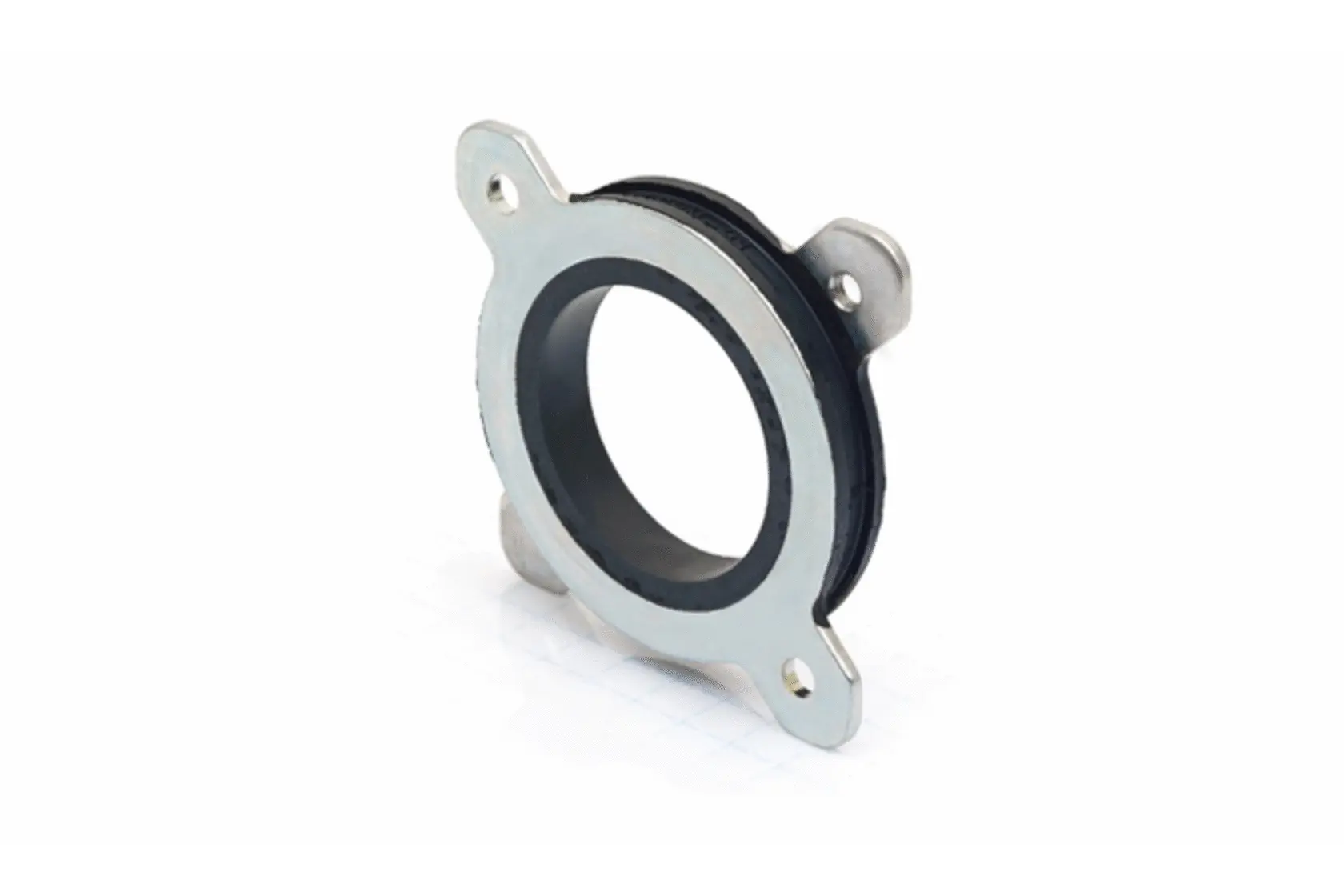

Damper – For mounting flange

Between the two flange rings, the ZD-DF damper has a layer of vulcanized-on rubber for suppressing body-borne sound, which can be reduced by approx. 3-10 dB(A), depending on the frequency. Owing to…
  • Corresponding Motors ST41, ST42, ST59
  • Suitable for (Damper) for Mounting Flange
