Threaded nuts

Threaded nuts

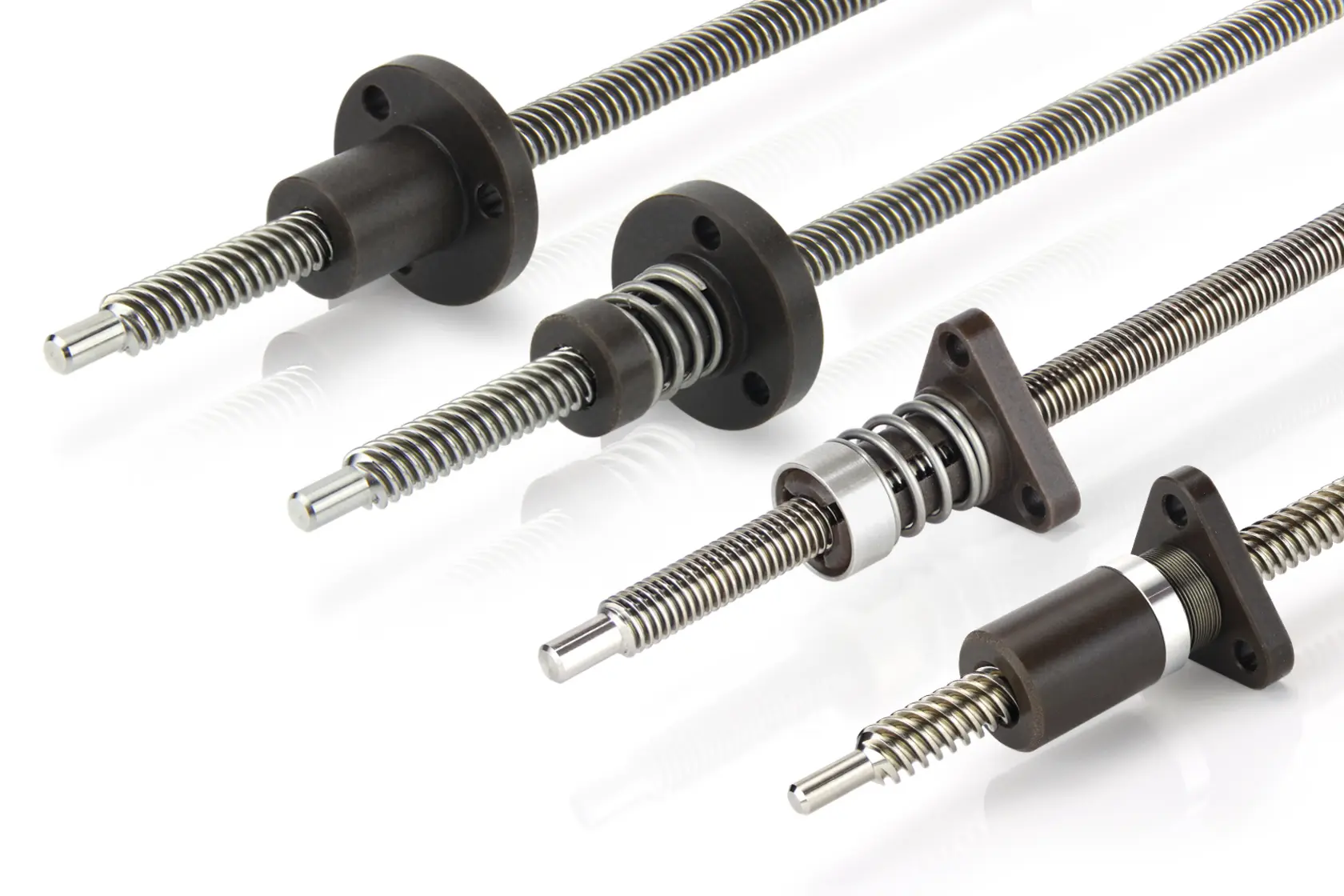

Providing quiet operation and a long service life, Nanotec’s standard and anti-backlash nuts are an ideal choice for high-performance motion control applications.

  • LSNUT-AA: Our standard nuts are ideal if backlash is irrelevant.

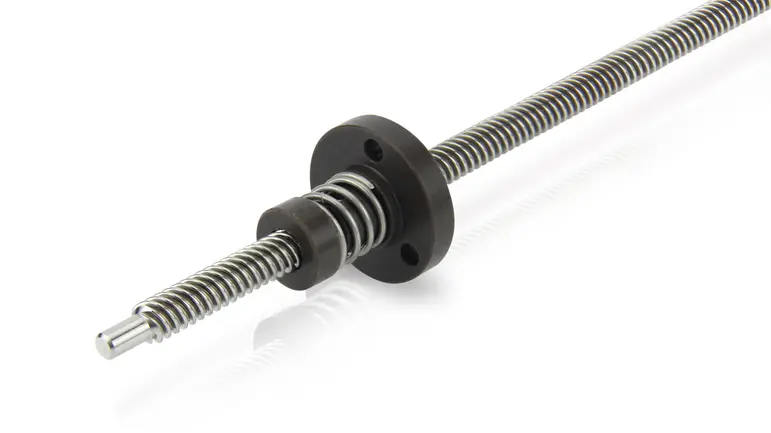

  • LSNUT-AE: For smaller leads, axial anti-backlash nuts with helical spring are an economical alternative to nuts with torsion spring.

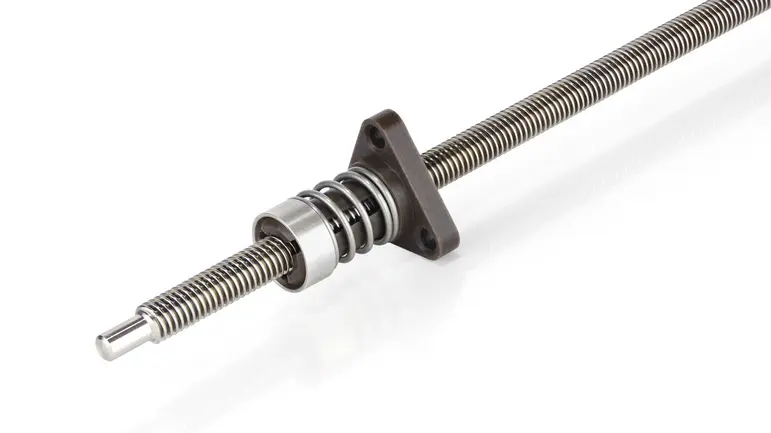

  • LSNUT-AF: Combined with Nanotec’s NEMA 17 and NEMA 23 actuators, radial anti-backlash nuts with helical spring provide precise positional accuracy.
  • LSNUT-AG: Anti-backlash nuts with torsion spring readjust themselves during operation. They are especially suited for applications where small loads have to be moved fast.
Property LSNUT-AA LSNUT-AE LSNUT-AF LSNUT-AG
Drag torque ++ - -- +
Load rating ++ - - +
Service life ++ -- - +
Anti-backlash -- - + ++
Anti-backlash up to which force / NEMA 8   = 10N
NEMA 11 = 21N
NEMA 14 = 21N
NEMA 17 = 21N
NEMA 23 = 36N		 NEMA 8   = N/A
NEMA 11 = N/A
NEMA 14 = 80N
NEMA 17 = 80N
NEMA 23 = 105N		 Constant anti-backlash
Price ++ + + --
Size ++ + - --

Threaded nuts  –  Products

Cost-effective threaded nuts.

LSNUT-AA – Threaded nut

Self-lubricating LSNUT-AA nuts offer better sliding properties than conventional bronze nuts and increase the efficiency and the service life of the actuator.
  • Thread Type Trapezoidal, ACME
  • Thread Diameter  -
  • Thread Lead  -
