NEMA 23 | 56 mm –  Stepper motor linear actuators

nema 23 linear actuator

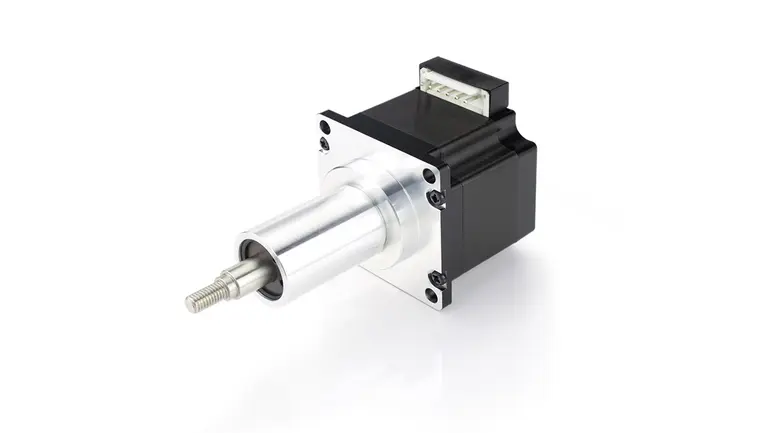

Nanotec offers hybrid linear actuators with flange size 56 mm in three versions: with linear guide (captive), with rotating threaded nut (non-captive) and with rotating lead screw (external linear actuators).

  • Force 352.2 – 1,000 N
  • Speed 70 – 150 mm/s
  • Resolution 10 – 50.8 µm/step

Matching motor controllers and encoders are available from Nanotec as well.


Non-captive, captive, external – NEMA 23

nema 23 external actuator

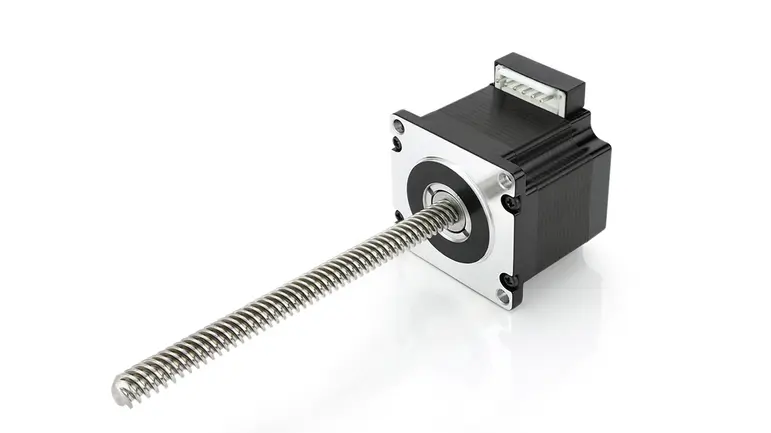

LSA56 – External linear actuator – NEMA 23

External actuator with 56 mm flange. The lead screw, attached to the motor shaft, is available with trapezoidal or ACME threads. Choose from our broad selection of matching nuts.
  • Size
  • NEMA 23
  • Peak Force 352.2 N - 966.3 N
  • Current per Winding 2 A
  • Resolution 7.9 µm/step - 50.8 µm/step

Linear actuators – NEMA 23
