NEMA 11 | 28 mm –  Stepper motor linear actuators

Nanotec offers hybrid linear actuators with flange size 28 mm in three versions: with linear guide (captive), with rotating threaded nut (non-captive) and with rotating lead screw (external linear actuators).

• Force 50 – 210 N
• Speed 19 – 120 mm/s
• Resolution 3.2 – 25.4 µm/step

Matching motor controllers and encoders are available from Nanotec as well.

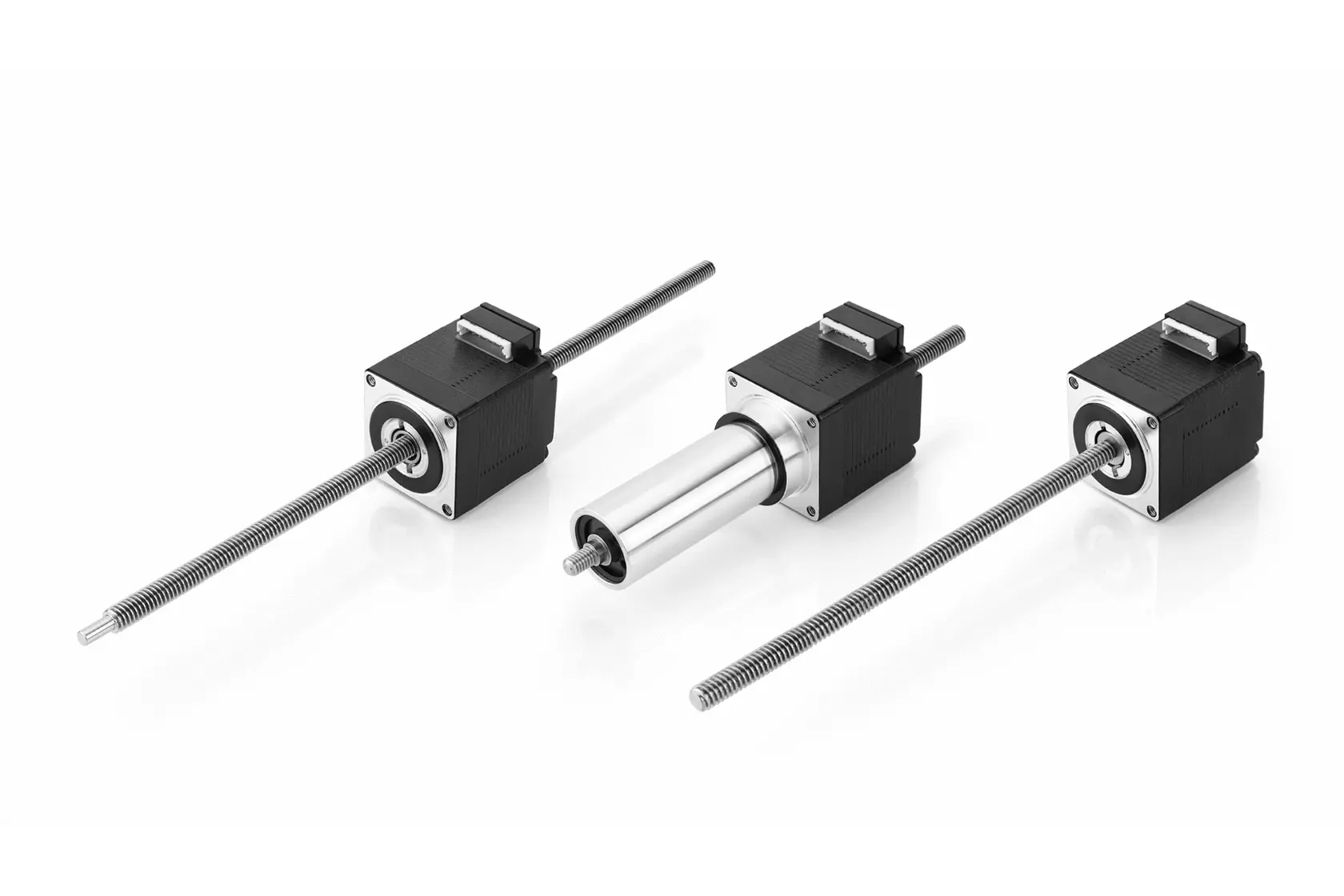

Non-captive, captive, external – NEMA 11

LA28 – Non-captive linear actuator – NEMA 11

• Description
• Technical data

NEMA 11 (28 mm) linear actuator with high force. The threaded nut is injection-moulded into the hollow shaft and comes with a trapezoidal or an ACME thread.

• Size
• NEMA 11
• Peak Force 50 N - 210 N
• Current per Winding 0.6 A - 1.5 A
• Resolution 3.2 µm/step - 25.4 µm/step

LGA28 – Captive linear actuator – NEMA 11

• Description
• Technical data

Compact linear actuator with a flange size of 28 mm. The integrated linear guide permits high-precision feeding without additional mechanical components.

• Size
• NEMA 11
• Peak Force 50 N - 210 N
• Current per Winding 1 A
• Resolution 3.2 µm/step - 25.4 µm/step

LSA28 – External linear actuator – NEMA 11

• Description
• Technical data

External actuator with 28 mm flange. The lead screw, attached to the motor shaft, is available with trapezoidal or ACME threads. Choose from our broad selection of matching nuts.

• Size
• NEMA 11
• Peak Force 50 N - 210 N
• Current per Winding 1 A
• Resolution 3.2 µm/step - 25.4 µm/step
