NEMA 17 | 42 mm –  Stepper motor linear actuators

nema 17 linear actuator

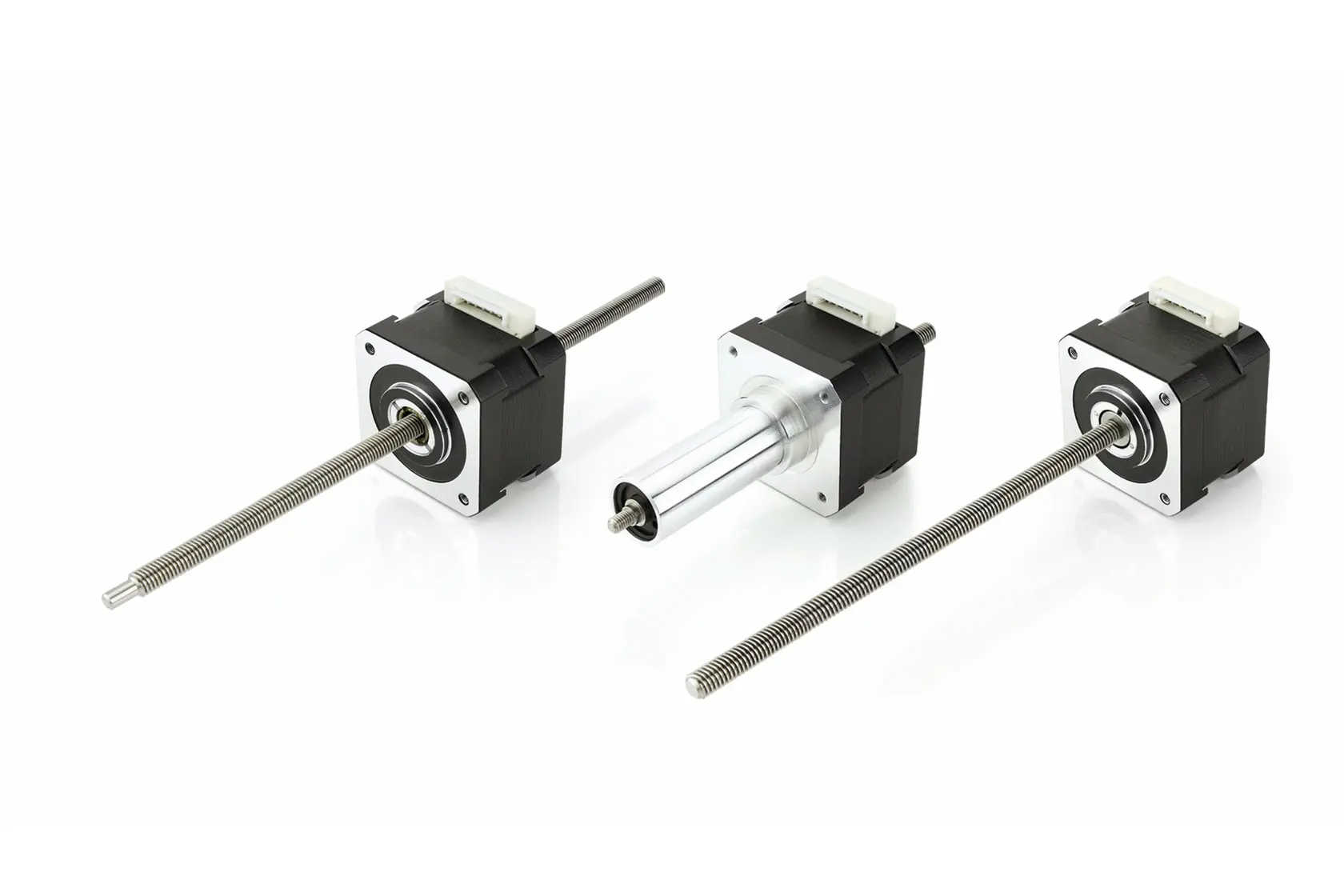

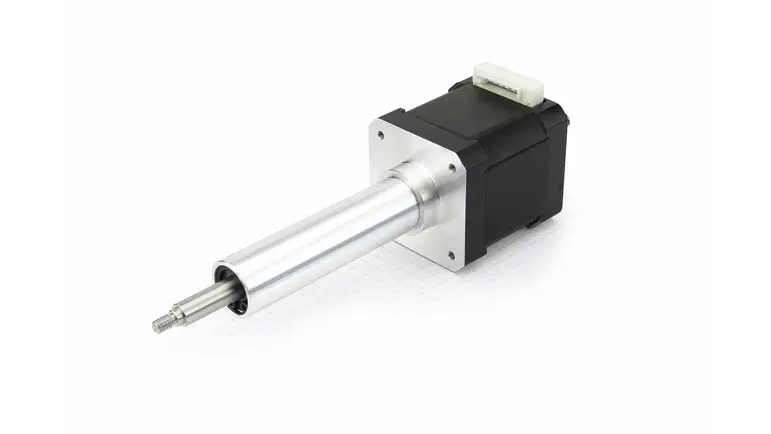

Nanotec offers hybrid linear actuators with flange size 42 mm in three versions: with linear guide (captive), with rotating threaded nut (non-captive) and with rotating lead screw (external linear actuators).

  • Force 173.3 – 469.8 N
  • Speed 14 – 100 mm/s
  • Resolution 4 – 31.8 µm/step

Matching motor controllers and encoders are available from Nanotec as well.


Non-captive, captive, external – NEMA 17

nema 17 external linear actuator with rotating screw (driven screw)

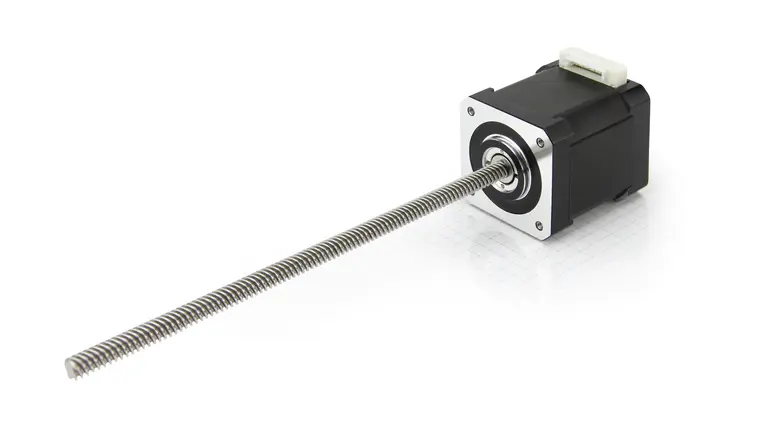

LSA42 – External linear actuator – NEMA 17

External actuator with 42 mm flange. The lead screw, attached to the motor shaft, is available with trapezoidal or ACME threads. Choose from our broad selection of matching nuts.
  • Size
  • NEMA 17
  • Peak Force 174.3 N - 498.5 N
  • Current per Winding 1.4 A - 1.8 A
  • Resolution 4 µm/step - 31.8 µm/step

Linear actuators – NEMA 17
