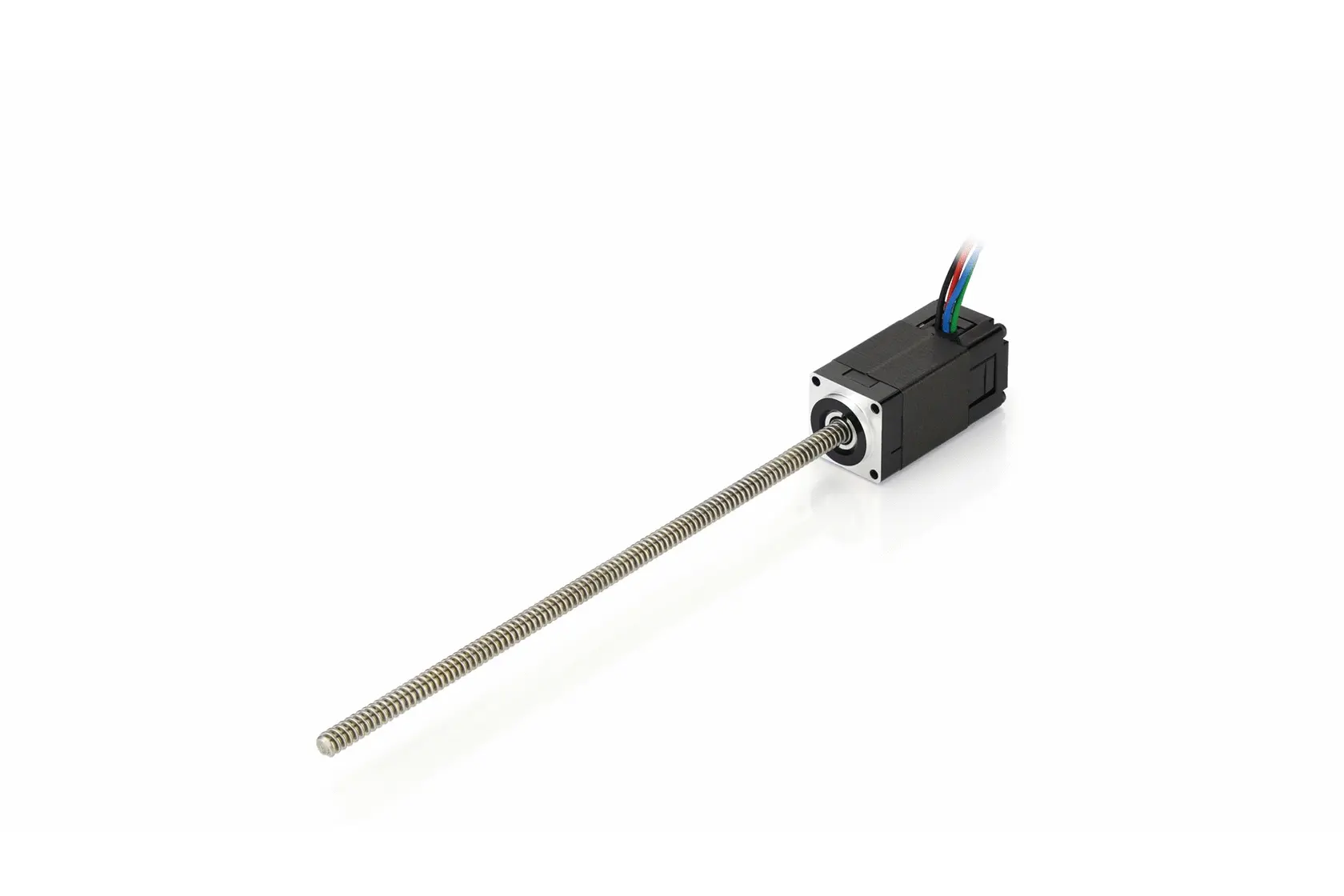

LSA14 – External linear actuator – NEMA 6
This small linear actuator has a 14 mm flange and delivers a maximum force of 15 N. The screw is available with trapezoidal or ACME thread, matching nuts can be selected from the accessories list. With its compact design, the LSA14 is ideal for medical devices, laboratory automation and optical technology.
- 3.5 mm thread diameter
- 1 mm or 2 mm screw lead
- 1.8° step angle
- Integrated connector
Nanotec also offers motor controllers for this linear actuator.
Please note:
The force and output power ratings in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values. Moving against fixed limit stops should be avoided.
Linear Actuators – NEMA 6
Please wait while productfinder is loading ...
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque [Nm] at rpm
|
||
|---|---|---|
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque [Nm] at rpm
|
||
|---|---|---|
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Force [N] at mm/s
|
|||
|---|---|---|---|
|
|||
You can select up to 6 products for a torque curve comparison.
