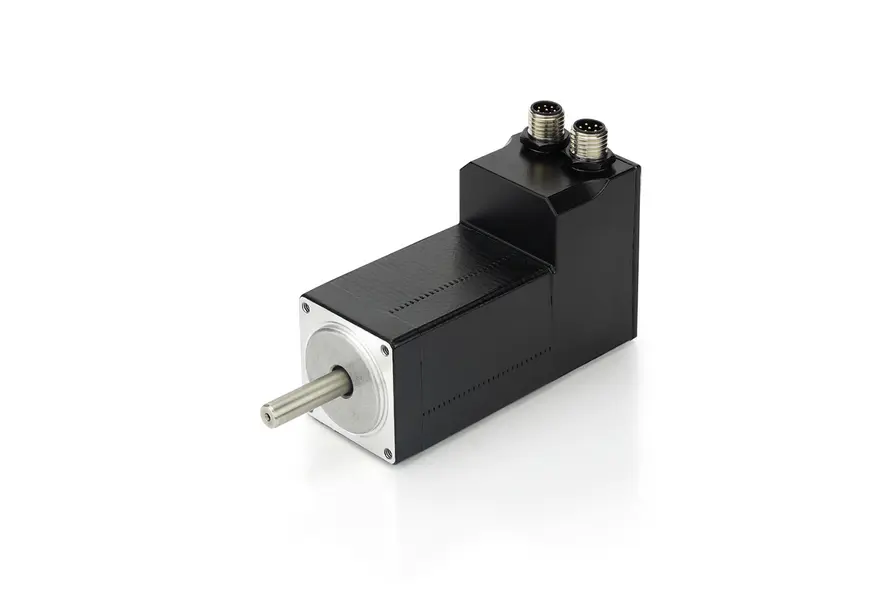

AS2818L1504-E –  Stepper motor with connector IP65 – NEMA 11

Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure
You can configure this article with others. Please click the configure button below to start.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (6)
Shaft modification Shaft modification (1)

Technical Data

  • Size
  • IP-Protection Motor (Except Shaft Output) IP65
  • Holding Torque
  • Inductance per Winding 1.9 mH
  • Length "A"
  • Brake
  • Encoder Type incremental
  • Operating Voltage (Encoder) 5 V
  • NEMA 11
  • Current per Winding 1.5 A
  • Resistance per Winding 1.9 Ohm
  • Rotor Inertia 18 gcm²
  • Weight
  • Encoder
  • Encoder Resolution 4096 CPR

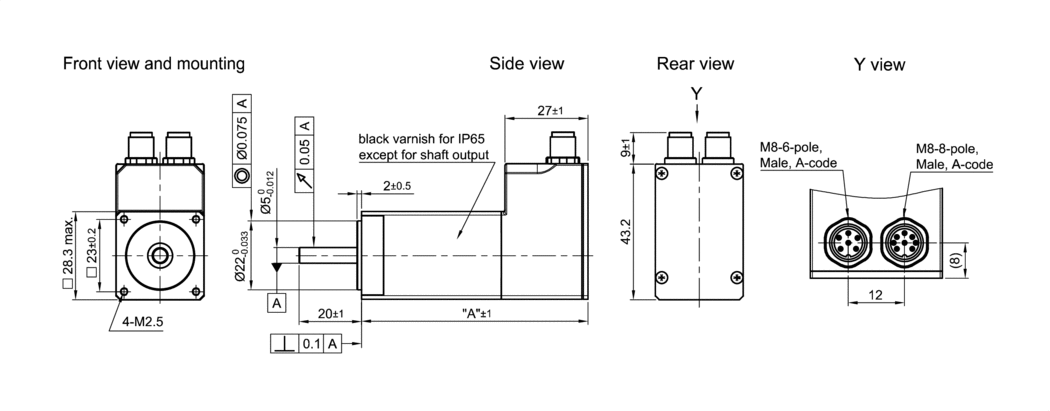

Dimensions

AS2818-E
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Certificates

Accessories

ZK-M8-6-2M-1-AFF Connection cable M8
ZK-M8-8-2M-1-PUR-S Connection cable M8
