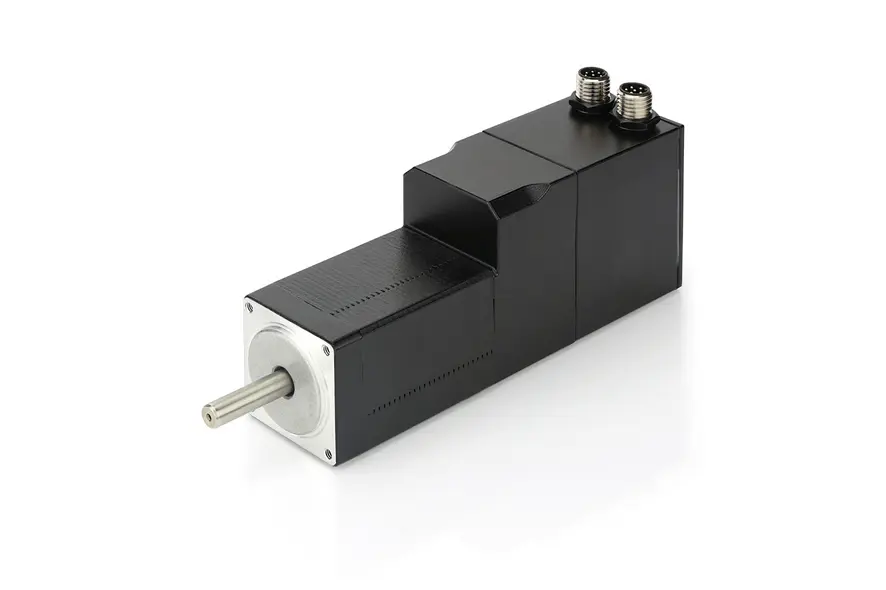

AS2818L1504-EB –  Stepper motor with connector IP65 – NEMA 11

Cadenas

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (6)
Shaft modification Shaft modification (1)

Technical Data

  • Size 1.1 in
  • IP-Protection Motor (Except Shaft Output) IP65
  • Holding Torque 25.5 oz-in
  • Inductance per Winding 1.9 mH
  • Length "A" 4.2 in
  • Brake
  • Holding Torque (Brake) 28.3 oz-in
  • Encoder Resolution 4096 CPR
  • NEMA 11
  • Current per Winding 1.5 A
  • Resistance per Winding 1.9 Ohm
  • Rotor Inertia 18 gcm²
  • Weight 0.75 lb
  • Encoder
  • Encoder Type incremental
  • Operating Voltage (Encoder) 5 V

Dimensions

AS2818-EB

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]1.002.004.001020401002004001 0002 0004 00000.0600.120.180.24
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 398.50 rpm
1.5A 12V


 0.179
1.5A 24V


 0.213

Downloads

CAD
Datasheets
Conformity

Accessories

ZK-M8-6-2M-1-AFF Connection cable M8
ZK-M8-8-2M-1-PUR-S Connection cable M8
