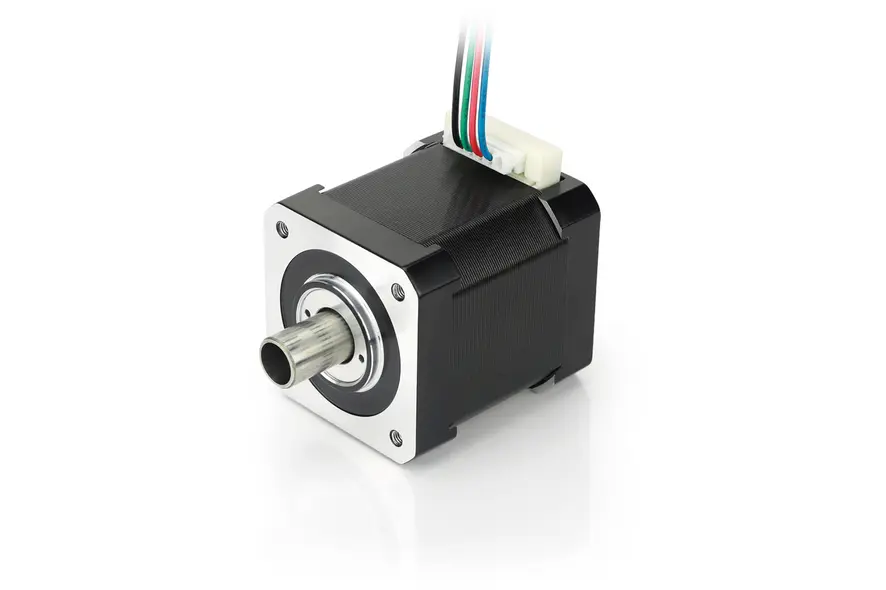

SCA4218L1804-L –  Stepper motor with hollow shaft – NEMA 17

NEMA 17 hollow-shaft stepper motor with second shaft end and many options: encoders and motor controllers /drives. High torque. See also custom solutions
Cadenas

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Encoders for BLDC motors and stepper motors Encoders for BLDC motors and stepper motors (5)

Technical Data

  • NEMA 17
  • Current per Winding 1.8 A
  • Rotor Inertia 68 gcm²
  • Inductance per Winding 2.6 mH
  • Length "A" 1.9 in
  • Size 1.7 in
  • Holding Torque 60.9 oz-in
  • Resistance per Winding 1.6 Ohm
  • Resolution 1.8 °/step
  • Weight 0.77 lb

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]1.002.004.001020401002004001 0002 0004 00000.150.300.450.60
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 299.70 rpm
1.8A 12V


 0.311
1.8A 24V


 0.516
1.8A 48V


 0.506
