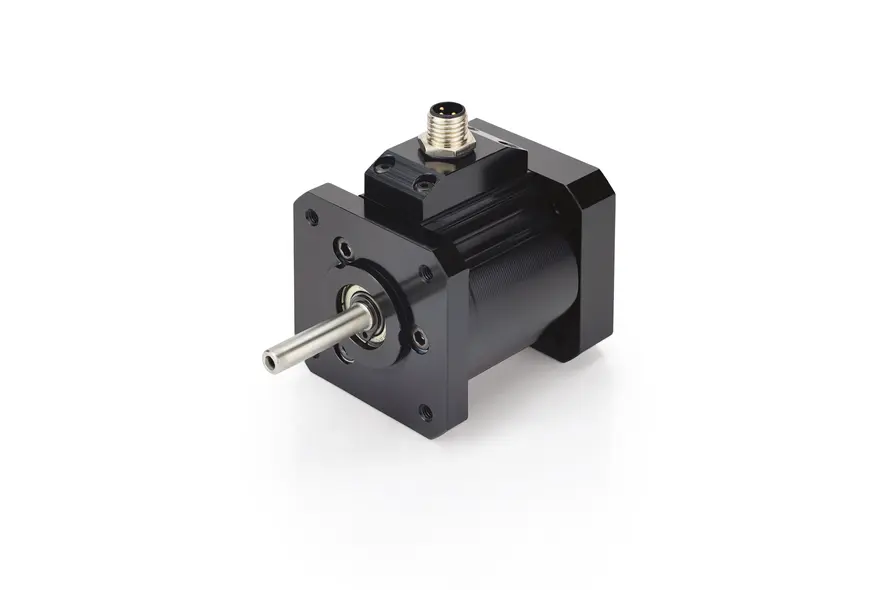

BRAKE-BCD42-0,4-5 –  Spring-loaded brakes

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

The BCD brakes can only be ordered with a motor.

Technical Data

• Operating Voltage (Brake) 24 VDC
• Holding Torque (Brake)
• Size
• Hub clamping connection
• Connection connector M8
• Switch-On Time 50 ms

• Rated Power 6.9 W
• Shaft Diameter
• Moment of Inertia 0.53 kg mm²
• Fastening with 4 M4 screws
• Switch-Off Time 30 ms
• Weight

---

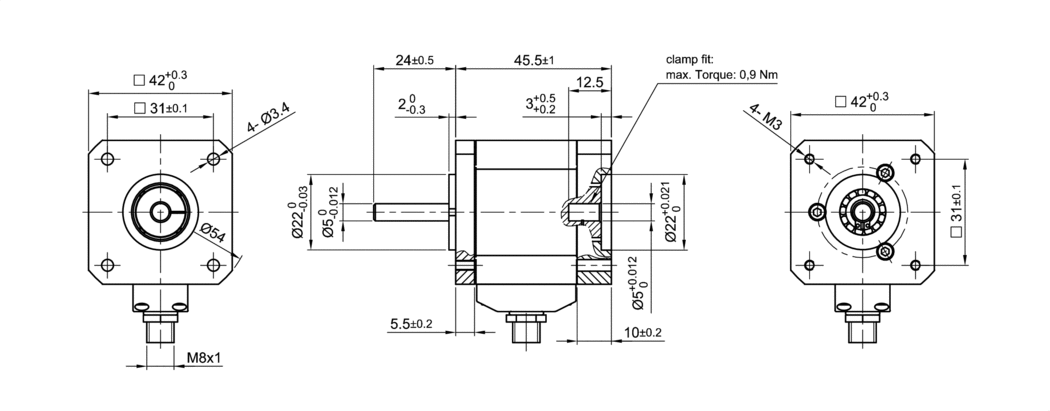

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• BRAKE-BCD42-0,4-5 (stp, 347 KB)

Datasheets

• BRAKE-BCD42-0,4-5 (pdf, 210 KB)

Certificates

• EU-DoC_BRAKE-BCDxx
•

Accessories

ZK-M8-3-2M-1-AFF

Brake cable straight 2m
