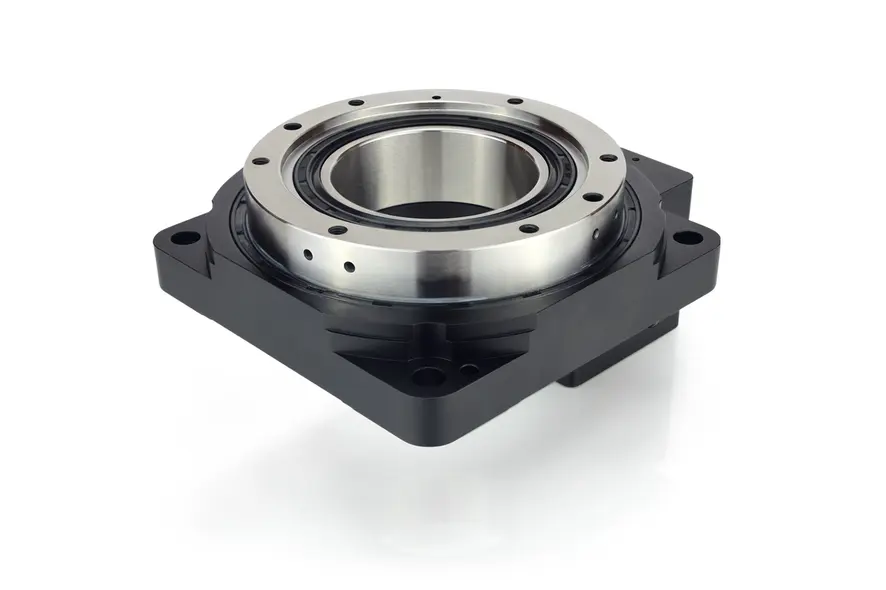

HRTA-1301-018

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

The hollow rotary tables can only be ordered in combination with a stepper motor.

Technical Data

• For Motor Size NEMA 23, NEMA 24
• Efficiency 98 %
• Rated Output Torque 22 Nm
• Repetitive Positioning Accuracy 1±0.5 ´(arc minutes)
• Runout of Output Table Surface
• Reduction Ratio 18
• Moment of Inertia 11000 kg mm²
• Operating Temperature -25 °C - 90 °C
• Flange Length L1
• Admissible Axial Shaft Load 2000 N
• Size

• Type Reinforced Bearing
• Max. Backlash 1 ´(arc minutes)
• Max. Output Torque 22 Nm
• Max. Tilting Moment
• Runout of Output Table inner (Outer) Diameter
• Max. Input Speed 4000 rpm
• Service Life 20000 h
• Length "L"
• Weight
• IP-Protection Gearbox IP50

---

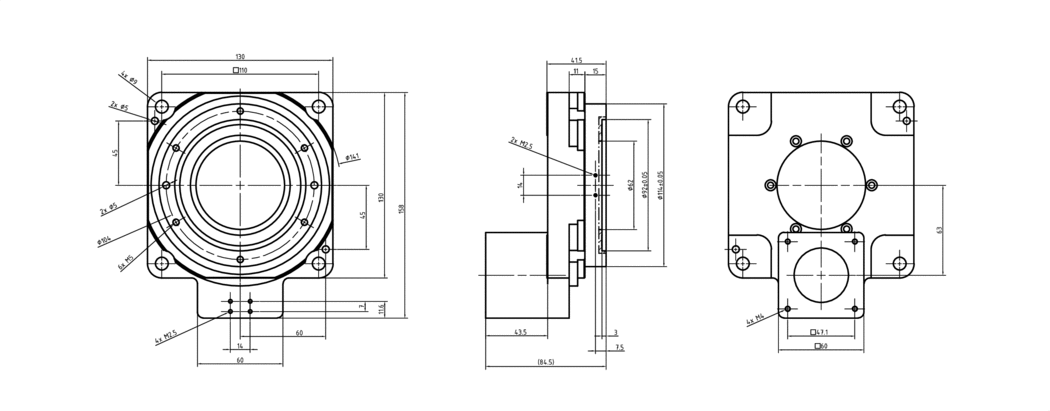

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• HRTA-1301-018 (stp, 388 KB)

Datasheets

• HRTA-1301-018 (pdf, 320 KB)

Certificates

• EU-DoC_HRTA.pdf
•
