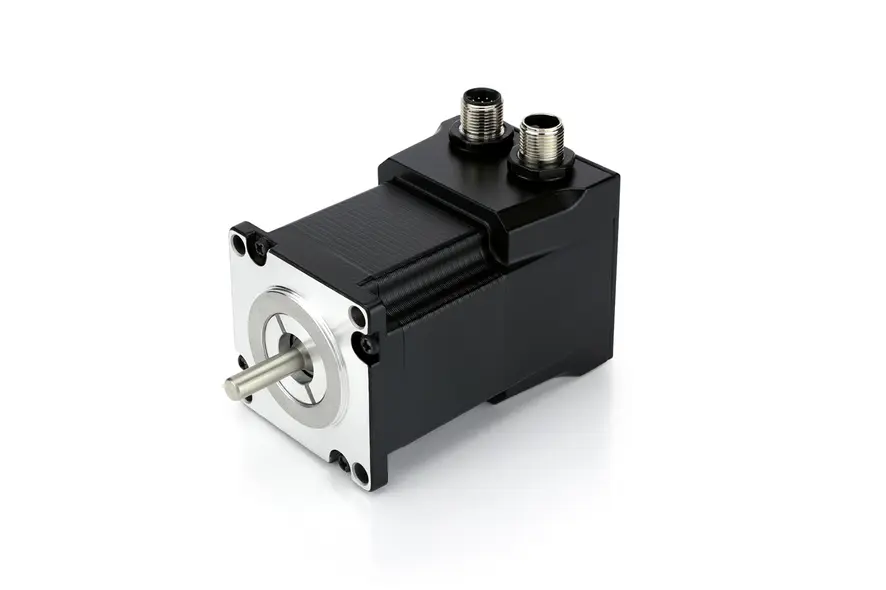

ASA5618M42-W1 –  Stepper motor IP65 with UL/CSA certification – NEMA 23

Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure
You can configure this article with others. Please click the configure button below to start.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (92)

Technical Data

  • Size
  • IP-Protection Motor (Except Shaft Output) IP65
  • Holding Torque
  • Inductance per Winding 1.6 mH
  • Length "A"
  • Brake
  • Encoder Signal Type SSI
  • Operating Voltage (Encoder) 4.75 – 15.00 V
  • NEMA 23
  • Current per Winding 4.2 A
  • Resistance per Winding 0.45 Ohm
  • Rotor Inertia 480 gcm²
  • Weight
  • Encoder
  • Encoder Resolution SSI 17 Bit Single-Turn / 16 Bit Multi-Turn Absolute

Dimensions

Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Certificates

Accessories

ZK-M12-4-2M-1-LFF Motor cable straight, 2m
ZK-M12-4-2M-2-LFF Motor cable angled, 2m
ZK-M12-4-5M-1-LFF Motor cable straight, 5m
ZK-M12-4-5M-2-LFF Motor cable angled, 5m
ZK-M12-8-2M-1-AFF Encoder cable straight, 2m
ZK-M12-8-2M-2-AFF Encoder cable angled, 2m
ZK-M12-8-5M-1-AFF Encoder cable straight, 5m
ZK-M12-8-5M-2-AFF Encoder cable angled, 5m
ZK-M12-8-2M-2-PADP Encoder cable angled, 2m
