DKA50M048050 –  Frameless BLDC motors New

Different sized DKA Frameless BLDC motors
Cadenas

Availability

Technical Data

  • NEMA
  • Rated Power 158 W
  • Rated Torque 30 Ncm
  • Rated Current 3.6 A
  • Rated Speed 5000 rpm
  • Rotor Inertia 5.6 gcm²
  • Line to Line Inductance 0.457 mH
  • Weight 0.11 kg
  • Size 50 mm
  • Rated Voltage 48 V
  • Peak Torque 96 Ncm
  • Peak Current 11.6 A
  • Torque Constant 89 Ncm/A
  • Line to Line Resistance 0.93 Ohm
  • Length "A" 15.4 mm

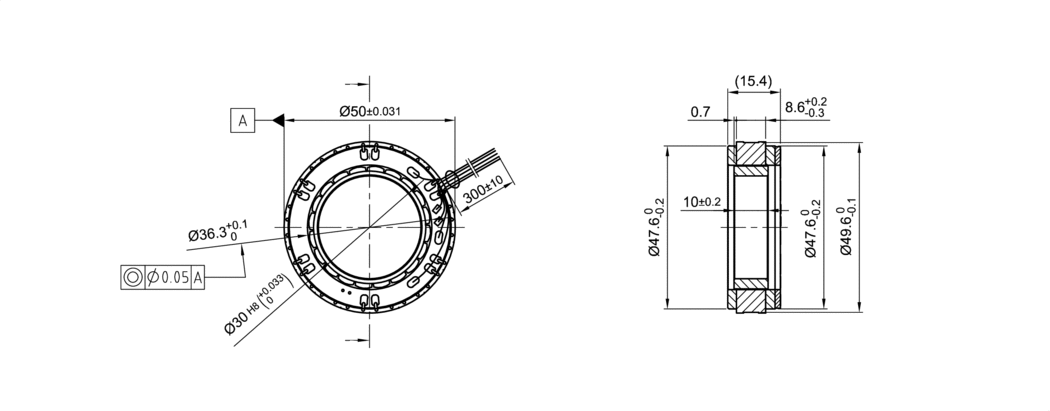

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Torque [Nm]Speed [rpm]00.100.200.300.400.500.600.700.800.9002 0004 0006 0008 000
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Speed
Output power
Continuous Operation
Speed [rpm] at 3,100.00 Nm
48V



 n/a
48V



 n/a

Downloads

CAD
Datasheets
Manuals
Conformity

Knowledge Base

Brushless DC Motors | BLDC Motors from NANOTEC
Brushless direct current motors, abbreviated as BLDC motors, are – despite their name –  three-phase current synchronous machines: the rotor follows a magnetic rotational field and the movement is synchronous to the AC voltage applied to the windings. This motor type is frequently referred to as "brushless direct current motor" because, in many applications, it replaces direct current motors with brushes (brushed DC or commutator motors).…
More details
