DKA115L048006 –  Frameless BLDC motors New

Availability

Add to cart

Request quote

Request quote

Dear Customer,

If you would like to request a quotation, please log in or register. In the shopping cart you will find the "Request a quote" button. You will find the instructions here.

For larger quantities, please contact our sales department: order@nanotec.de

Close

Add to cart

DKA115L048006 was added to your basket.

Close Checkout/Review/Share

Technical Data

• NEMA
• Rated Power 506 W
• Rated Torque 1104.57 oz-in
• Rated Current 13 A
• Rated Speed 620 rpm
• Rotor Inertia 910 gcm²
• Line to Line Inductance 1.6 mH
• Weight 4.4 lb

• Size 4.5 in
• Rated Voltage 48 V
• Peak Torque 3313.72 oz-in
• Peak Current 39 A
• Torque Constant 662 Ncm/A
• Line to Line Resistance 0.35 Ohm
• Length "A" 2.4 in

---

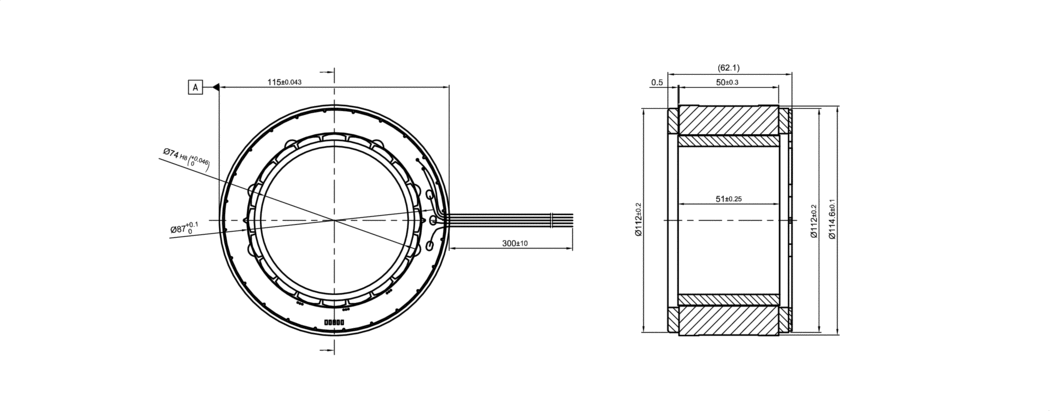

Dimensions

3D 2D

Please select a download format

Creation in progress ...

---

Torque Curves

Download PDF Switch Axes

Axes representation: lin/lin

log/linlin/linlin/loglog/log

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.

	Speed	Output power	Continuous Operation	Speed [rpm] at 450.00 Nm
48V				n/a
48V				n/a
Operating Point

Close

Downloads

CAD

• DKA115L048006 (stp, 369 KB)

Datasheets

• DKA115L048006 (pdf, 206 KB)

Manuals

• Assenbly Notes DKA (pdf, 832 KB)

Conformity

• EU-DoC_DKA.pdf
•

---

Knowledge Base

Brushless DC Motors

Brushless direct current motors, abbreviated as BLDC motors, are – despite their name –  three-phase current synchronous machines: the rotor follows a magnetic rotational field and the movement is synchronous to the AC voltage applied to the windings. This motor type is frequently referred to as "brushless direct current motor" because, in many applications, it replaces direct current motors with brushes (brushed DC or commutator motors).…

More details
