NME1 –  Magnetic encoder

NME1

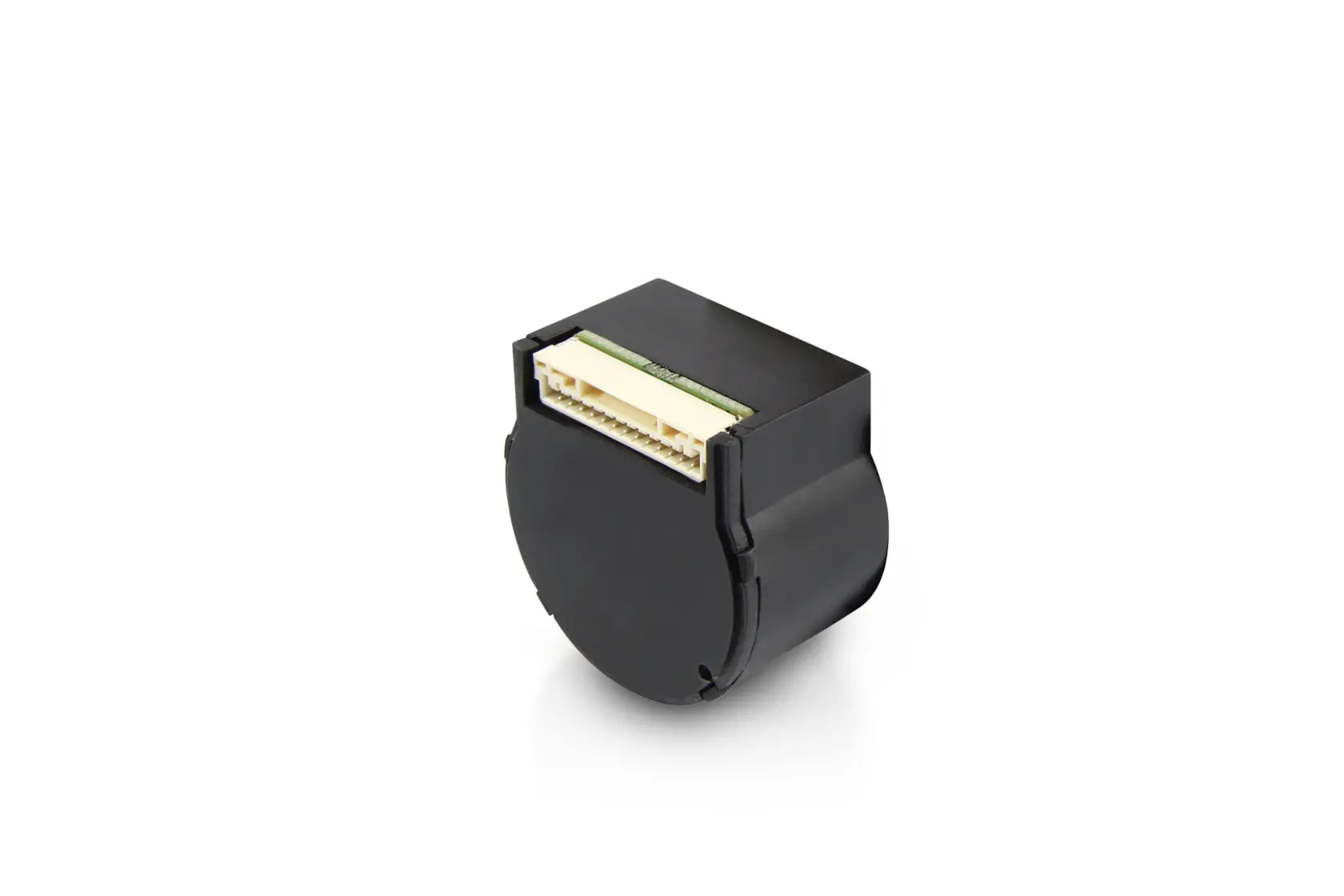

The NME1 incremental encoder is equipped with sensors that detect changes in the magnetic field generated by a magnet on the motor shaft. Integrated line drivers not only provide positive signals but also inverted signals, enhancing the encoder's noise immunity. Hall signals are used for commutating BLDC motors.

The NME1 magnetic encoder is designed for a voltage range from +5 to +24 V and capable of high-speed operation.

  • Incremental resolution: 1,024 CPR / 4,096 PPR
  • Max. Speed: 30,000 rpm
  • For shaft diameters of 5 mm and 6.35 mm

Please note:
These encoders are only available as combination articles. They are mounted and programmed by Nanotec.


NME1 Articles
