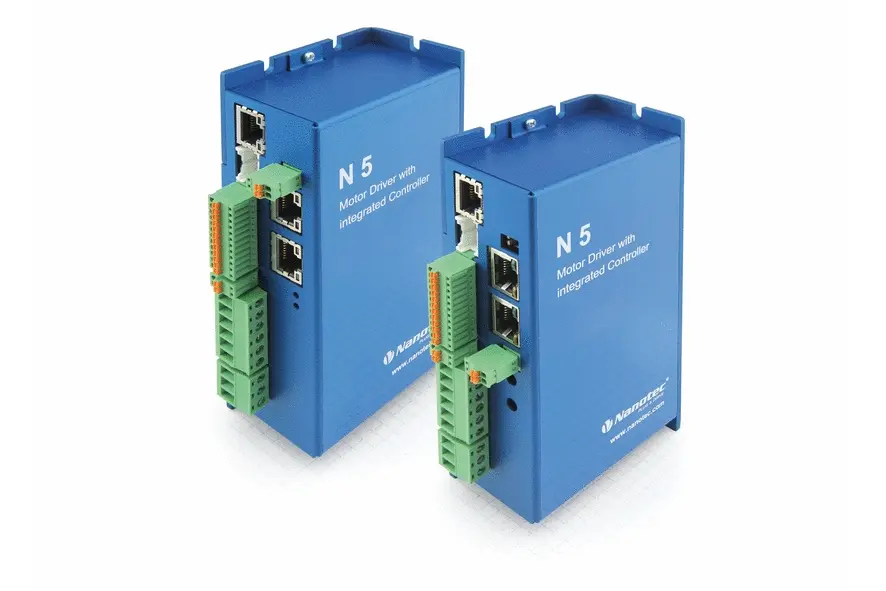

N5-1-3 –  Motor controller for EtherNet/IP

Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.

Under „Downloads“ you will find the technical manual that corresponds with the stock firmware. Please refer to the new technical manual and the document “Instructions for Firmware Update to Version FIR-v2039” when using Plug & Drive Studio 2.


Technical Data

  • Interface -
  • Rated Current (RMS) 10 A
  • Matching Motors Brushless DC motors, Stepper Motors
  • Type of Digital Inputs 5/24 V switchable or 5 - 24 V
  • Type of Analog Input -10 - +10 V / 0 - 20 mA switchable
  • Type of Digital Output open-drain (max. 24 V/500 mA)
  • Encoder Signal Type incremental
  • Weight
  • Operating Voltage 12 VDC - 72 VDC
  • Peak Current (RMS) 10 A
  • Number of Digital Inputs 6
  • Number of Analog Inputs 2
  • Number of Digital Outputs 2
  • Encoder Input
  • Brake Output
  • Temperature Range -10 °C - 40 °C

Dimensions

N5-x-3 EtherNet/IP
Creation in progress ...

Downloads

CAD
Manuals
Software
Certificates

Accessories

EB-BRAKE-48V Brake module
ZK-PADP-12-500-S Encoder Cable Contr. 0.5m
ZK-M12-8-2M-2-PADP Encoder cable angled, 2m
ZK-MCM-12-500-S-JPAD Encoder cable NME2/3 0.5m
ZK-MCM-12-2,0-S-JPAD Encoder cable NME2/3 2.0m
ZK-NOE-10-500-S-PADP Encoder cable NOE, 0.5m
ZK-NTO3-10-1000-PADP Encoder cable NTO3, 1m
ZK-NTO3-10-500-PADP Encoder cable NTO3, 0.5m
ZK-WEDL-500-S-PADP Encoder cable WEDL, 0.5m
Z-K4700/50 Capacitor
Z-K10000/100 Capacitor
ZCPHOFK-MC0,5-12  * Connector
ZCWE-RM5-6  * Clip-on Plug, 6-pin, RM 5 mm
ZCPHOFK-MC0,5-2  * Connector
ZCWE-RM5-3  * Clip-on Plug, 3-pin, RM 5 mm
* Included in the scope of delivery for N5-1-3.
