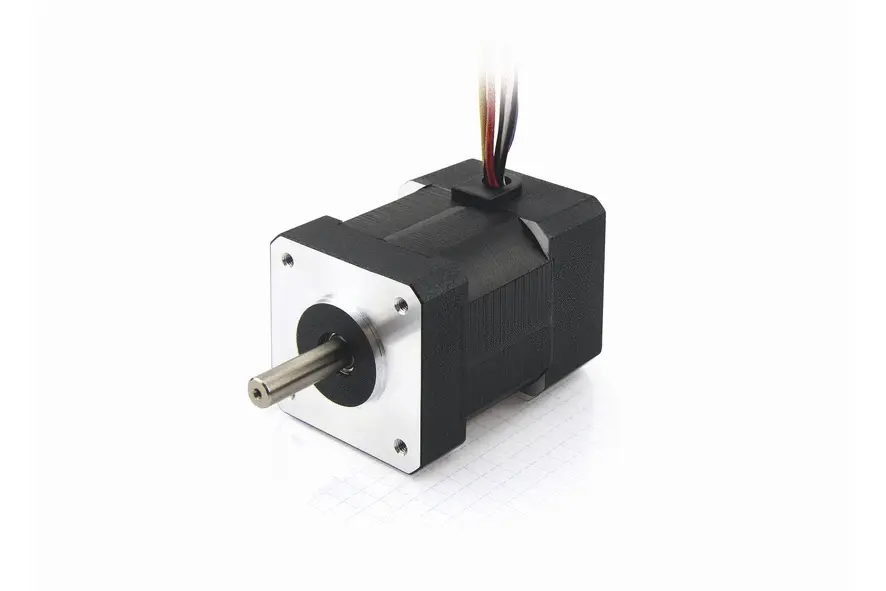

DB43C048030-A –  Brushless DC motor

Cadenas

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (43)
Encoders for BLDC motors and stepper motors Encoders for BLDC motors and stepper motors (19)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)
Shaft modification Shaft modification (2)

Technical Data

  • NEMA 17
  • Rated Power 138 W
  • Rated Torque 62.3 oz-in
  • Rated Current 3.66 A
  • Rated Speed 3000 rpm
  • Rotor Inertia 167 gcm²
  • Line to Line Inductance 1.25 mH
  • Weight 2.2 lb
  • Size 1.7 in
  • Rated Voltage 48 V
  • Peak Torque 186.93 oz-in
  • Peak Current 11 A
  • Torque Constant 12 Ncm/A
  • Line to Line Resistance 1.5 Ohm
  • Length "A" 3.9 in

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Torque [Nm]Speed [rpm]Efficiency [%]0.200.400.600.801.001.201.401.601.802.0001 0002 0003 0004 0000255075100
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Speed
Output power
Efficiency
Input Power
Power loss
Current consumption
Continuous Operation
Speed [rpm] at 1,581.00 Nm
48V







 n/a

Downloads

CAD
Datasheets
Conformity

Accessories

MK-DH-6,35-8-GPLE40 Spacer Sleeves
ZD-D28 Damper
ZD-D40 Damper
ZD-DF40 Damper

Knowledge Base

Brushless DC Motors | BLDC Motors from NANOTEC
