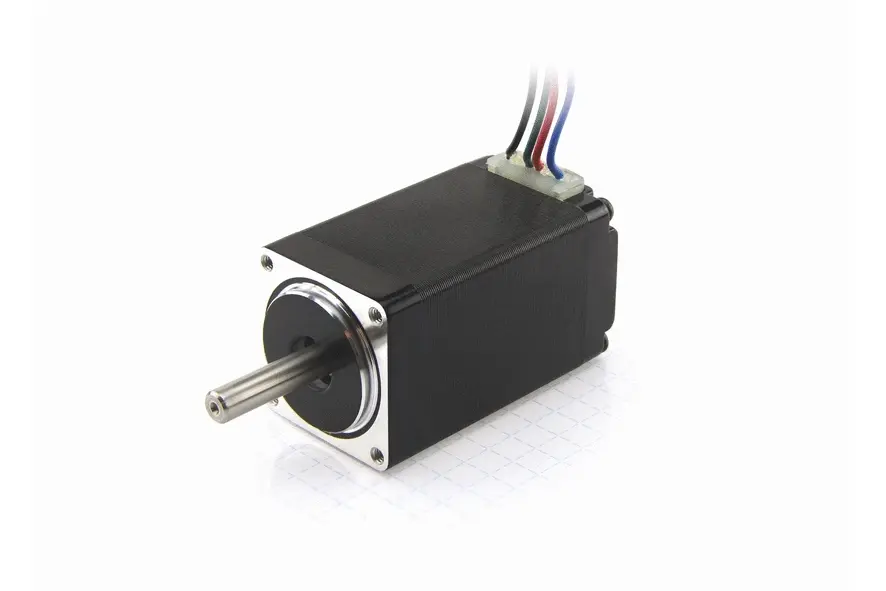

ST2818L1006-B –  Stepper motor – NEMA 11

Cadenas

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (6)
Encoders for BLDC motors and stepper motors Encoders for BLDC motors and stepper motors (12)
Damper Damper (2)
Shaft modification Shaft modification (1)

Technical Data

  • NEMA 11
  • Current per Winding 0.95 A
  • Holding Torque Bipolar 12.7 Ncm
  • Resistance per Winding 4.6 Ohm
  • Resolution 1.8 °/step
  • Weight 0.25 kg
  • Size 28 mm
  • Holding Torque Unipolar 9 Ncm
  • Rotor Inertia 18 gcm²
  • Inductance per Winding 1.8 mH
  • Length "A" 50.5 mm

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]1.002.004.001020401002004001 0002 0004 00000.0400.0800.120.16
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 60.10 rpm
0.68A 12V series


 0.128
0.68A 24V series


 0.127
0.68A 48V series


 0.125
0.96A 12V one winding


 0.09
0.96A 24V one winding


 0.088
0.96A 48V one winding


 0.079

Downloads

CAD
Datasheets
Conformity

Accessories

ZD-D28 Damper
ZK-JST-VL-4 Extension cable 2m € 21.40
ZK-JST-VL-6 Extension cable 2m € 22.80
