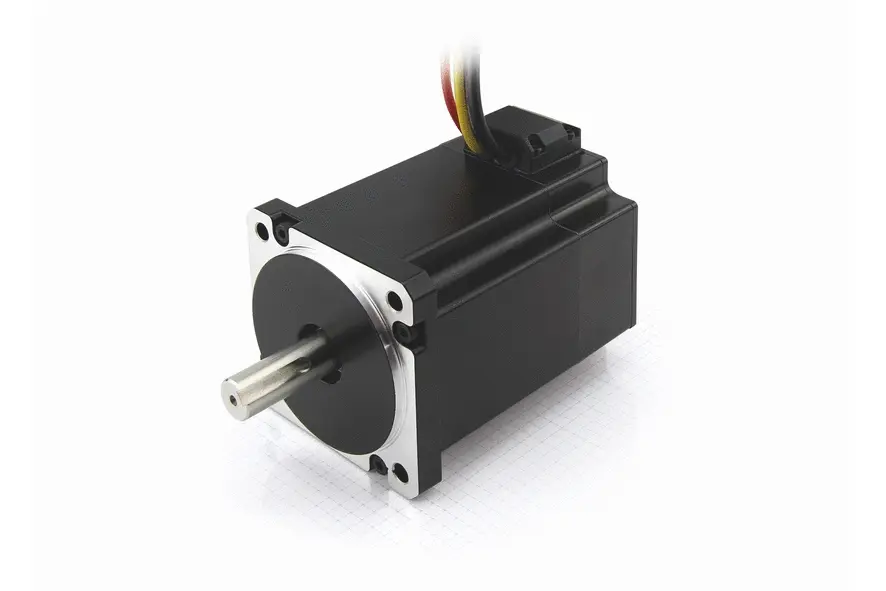

DB80L048030-ENM05J –  Brushless DC motor

Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure
You can configure this article with others. Please click the configure button below to start.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (10)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)

Technical Data

  • NEMA -
  • Encoder
  • Rated Power 706 W
  • Rated Torque
  • Rated Current 18.75 A
  • Torque Constant 12 Ncm/A
  • Line to Line Resistance 0.085 Ohm
  • Length "A"
  • Shaft Keyway
  • Size
  • Encoder Type incremental
  • Rated Voltage 48 V
  • Peak Torque
  • Rated Speed 3000 rpm
  • Rotor Inertia 1360 gcm²
  • Line to Line Inductance 0.4 mH
  • Weight

Dimensions

DB80
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Certificates

Accessories

MKS-DIN6885-A-5X5X25 Key

Knowledge Base

Brushless DC Motors | BLDC Motors from NANOTEC
Brushless direct current motors, abbreviated as BLDC motors, are – despite their name –  three-phase current synchronous machines: the rotor follows a magnetic rotational field and the movement is synchronous to the AC voltage applied to the windings. This motor type is frequently referred to as "brushless direct current motor" because, in many applications, it replaces direct current motors with brushes (brushed DC or commutator motors).…
