DBL36L024045-A –  Brushless DC motor

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

Add to basket

Add to basket

DBL36L024045-A was added to your basket.

Close Checkout/Review/Share

Request a quotation

Request a quotation

Dear Customer,

If you would like to request a quotation, please log in or register. In the shopping cart you will find the "Request a quote" button. You will find the instructions here.

For larger quantities, please contact our sales department: [email protected]

Close

Technical Data

• NEMA -
• Rated Power 33 W
• Rated Torque
• Rated Current 1.9 A
• Rated Speed 4500 rpm
• Rotor Inertia 27 gcm²
• Line to Line Inductance 1.2 mH
• Weight

• Size
• Rated Voltage 24 V
• Peak Torque
• Peak Current 5.7 A
• Torque Constant 3.7 Ncm/A
• Line to Line Resistance 1.1 Ohm
• Length "A"

---

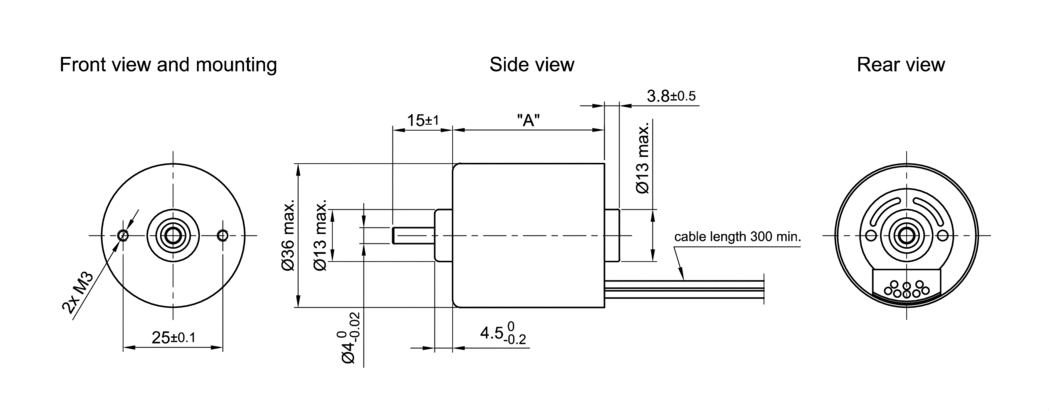

Dimensions

3D 2D

Please select a download format

Creation in progress ...

---

Torque Curves

Download PDF Switch Axes

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.

		Recommended load limit	Continuous duty region	Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
				{{ curve.calculateValueAtComparePoint(dataRow) }}
Compare Point
{{ attribute.label }}

{{ curve.currentAttributeDescription.label }}

Close

Downloads

CAD

• DBL36L024045-A (stp, 473 KB)

Datasheets

• DBL36L024045-A (pdf, 199 KB)

Certificates

• EU-DoC_DBL36
•

---

Knowledge Base

Brushless DC Motors

Brushless direct current motors, abbreviated as BLDC motors, are – despite their name –  three-phase current synchronous machines: the rotor follows a magnetic rotational field and the movement is synchronous to the AC voltage applied to the windings. This motor type is frequently referred to as "brushless direct current motor" because, in many applications, it replaces direct current motors with brushes (brushed DC or commutator motors).…

More details
