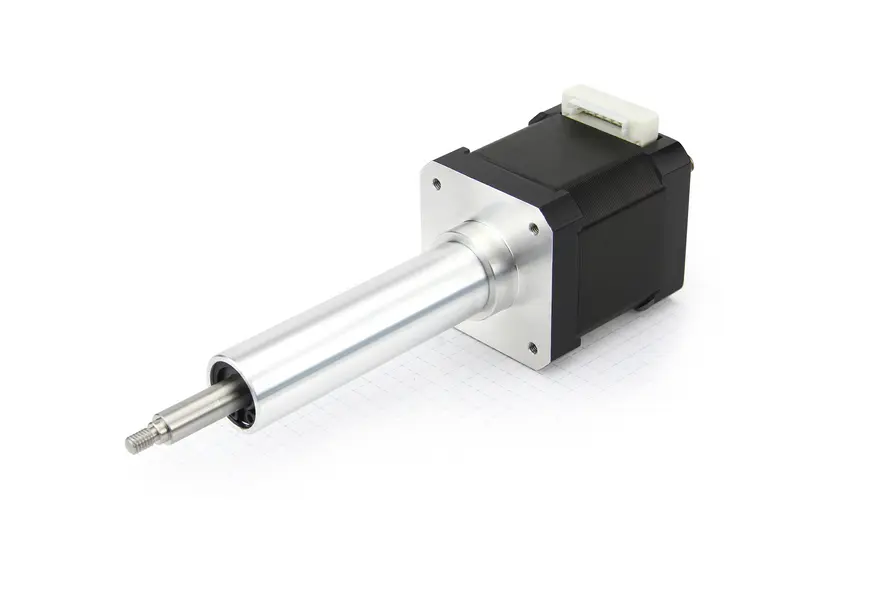

LGA421S14-B-UKDE-019 –  Captive linear actuator – NEMA 17

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

Add to basket

Add to basket

LGA421S14-B-UKDE-019 was added to your basket.

---

Accessories

ZK-JST-EHR-6-0.5M-S

Motor cable, 0.5m

Close Checkout/Review/Share

Configure Request a quotation

Request a quotation

Dear Customer,

If you would like to request a quotation, please log in or register. In the shopping cart you will find the "Request a quote" button. You will find the instructions here.

For larger quantities, please contact our sales department: [email protected]

Close

You can configure this article with others. Please click the configure button below to start.

Encoders for BLDC motors and stepper motors (5)

Technical Data

• Size
• Shaft end double
• Rated Force
• Current per Winding 1.4 A
• Thread Lead
• Resistance per Winding 2 Ohm
• Max. Axial Play ±0.09 mm
• Length "B"
• Weight

• NEMA 17
• Peak Force 278.7 N
• Speed 50 mm/s
• Thread Diameter
• Resolution 15.9 µm/step
• Inductance per Winding 2.8 mH
• Stroke Length "X"
• Length "A"
• Screw Coating

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

---

Force-Velocity Curve

Download PDF Switch Axes

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.

		Recommended load limit	Continuous duty region	Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
				{{ curve.calculateValueAtComparePoint(dataRow) }}
Compare Point
{{ attribute.label }}

{{ curve.currentAttributeDescription.label }}

Close

Downloads

CAD

• LGA421S14-B-UKDE-019 (stp, 794 KB)

Datasheets

• LGA421S14-B-UKDE-019 (pdf, 108 KB)

Certificates

• EU-DoC_LGA42
•

Accessories

ZK-JST-EHR-6-0.5M-S

Motor cable, 0.5m
