NTO4L-05-B12-HC (6 mm) –  Optical Encoder

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

This article cannot be ordered alone, only as part of a configuration.

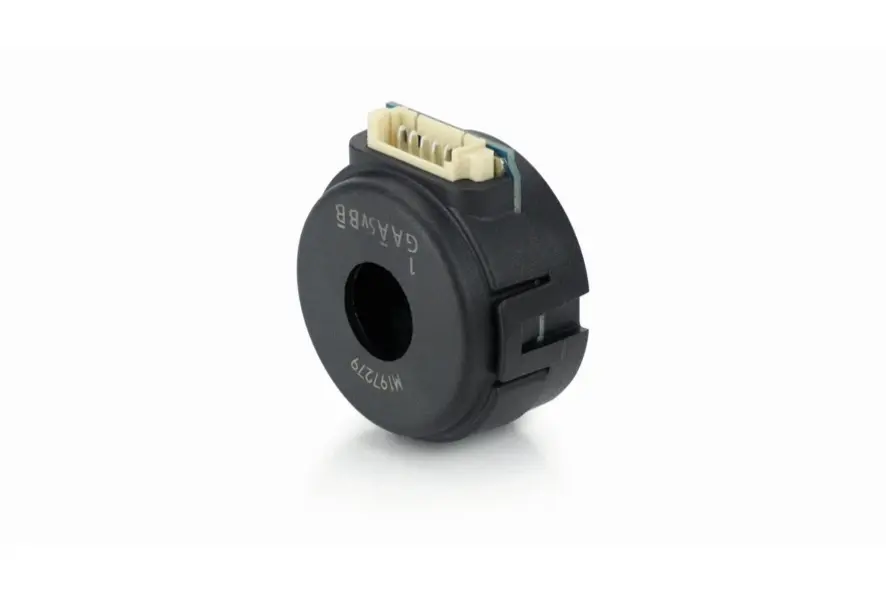

Encoder for 6 mm shaft. High interference immunity due to integrated line driver. With 1000 CPR resolution in stock, other resolutions are available on demand.

Technical Data

• Index
• Encoder Signal Type incremental
• Shaft Diameter
• Output Signals phase A, A\, B, B\
• Limit Frequency 100 kHz
• Signal Level low: ≤0.6 V, high: ≥4.75 V
• Operating Temperature -20 °C - 100 °C
• Output Fall Time 20 ns
• ESD, IEC61000-4-2 ±7 kV

• Line Driver
• Encoder Resolution 1000 CPR
• Operating Voltage (Encoder) 5 V
• Current Consumption 36, max. 44 mA
• Limit Speed 6000 RPM
• Max. Output Current per Channel 4.5 mA
• Output Rise Time 20 ns
• Vibration (5 Hz-2 kHz) 20 G

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• NTO4L-05-B12-HC.stp (stp, 5 MB)

Datasheets

• NTO4-05-xxx (pdf, 146 KB)

Certificates

• EU-DoC_NTO4
•

Accessories

ZK-NTO4L-610

Encoder cable NTO4, 0.61m
