LSNUT-AEAC-TDBA –  Axial anti-backlash threaded nut with helical spring

Availability

Add to cart

Request quote

Request quote

Dear Customer,

If you would like to request a quotation, please log in or register. In the shopping cart you will find the "Request a quote" button. You will find the instructions here.

For larger quantities, please contact our sales department: order@nanotec.de

Close

Add to cart

LSNUT-AEAC-TDBA was added to your basket.

Close Checkout/Review/Share

Technical Data

• Thread Code TDBA
• Thread Diameter 3.5 mm
• Number of Threads 1
• Bolt Circle 15.2 mm

• Thread Type Trapezoidal
• Thread Lead 1 mm
• Corresponding Motors LSA…-TDBA
• Mounting Hole Diameter 3.2 mm

---

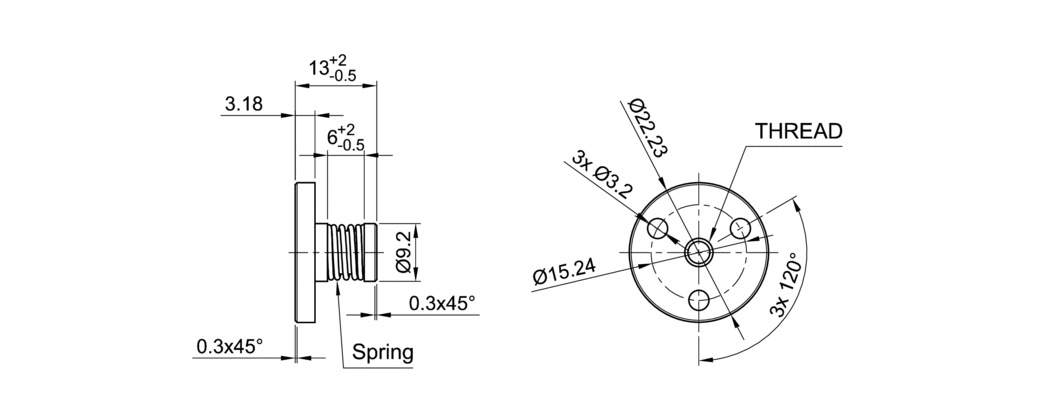

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• LSNUT-AEAC-TDBA (stp, 278 KB)

Datasheets

• LSNUT-AEAC-TDBA (pdf, 366 KB)

Conformity

• EU-DoC_LSNUT-...
•
