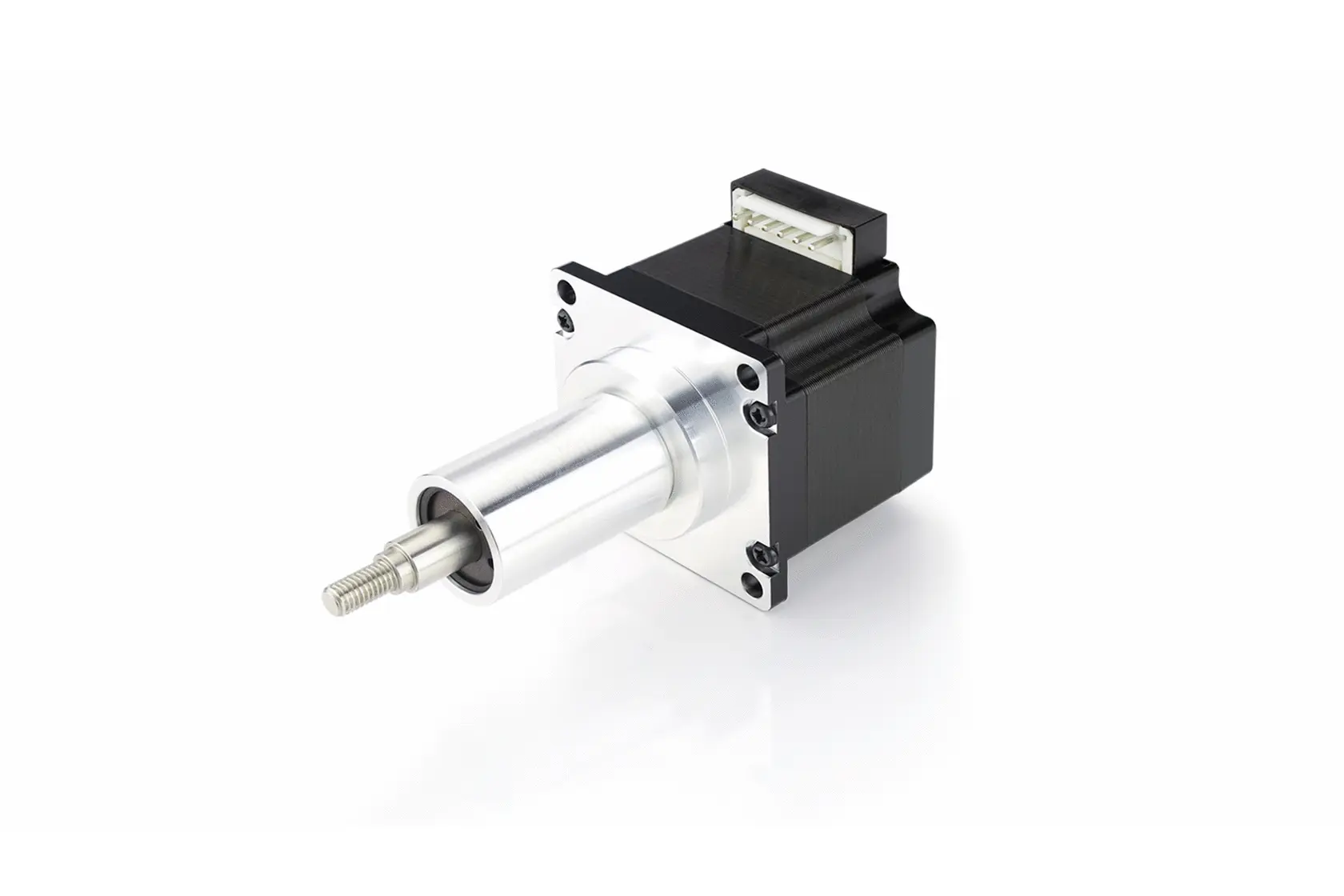

LGA56 – Captive linear actuator – NEMA 23
Compact linear actuator with 56 mm flange. The integrated linear guide permits high-precision feeding without additional mechanical components and prevents the lead screw from rotating. The optimized design enables speeds of up to 150 mm/s depending on the thread lead.
- Single stack size with 2.0 A winding
- Two stroke lengths: 19.05 mm or 38.1 mm
- Different thread types
- Second shaft end for encoder optional
- Integrated connector
For customized designs, thread leads from 1.27 mm to 12.7 mm and stroke lengths from 12.7 mm to 63.5 mm are available.
Nanotec also offers motor controllers/drives that can be matched with this linear actuator.
To add an encoder, use the configure option after selecting an actuator. The LGA56 can be combined with these encoders: NME2-SSI-V15-12-O, NME2-UVW-U15-05-O
Please note:
The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values. Moving against fixed limit stops should be avoided.
