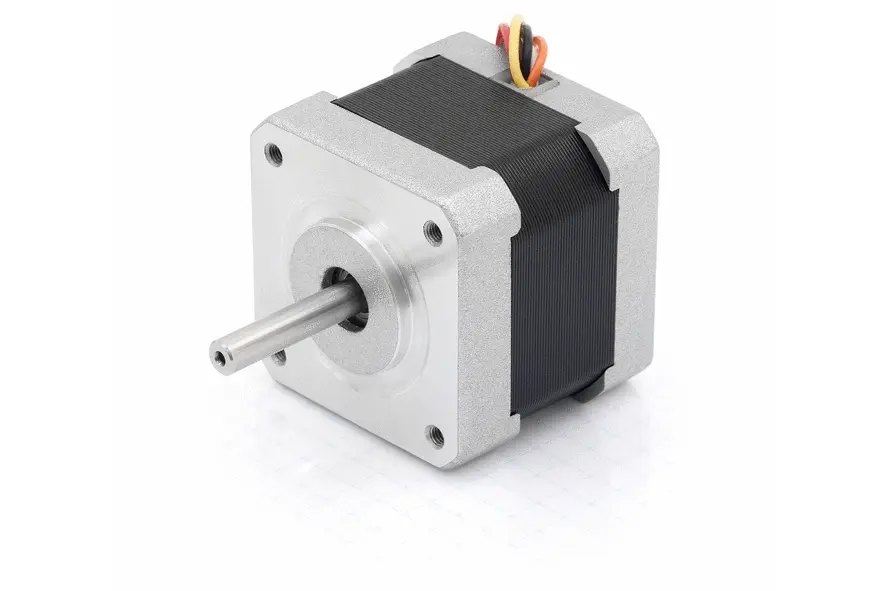

ST4118S0206-B –  Stepper motor – NEMA 17

Cadenas

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (50)
Encoders for BLDC motors and stepper motors Encoders for BLDC motors and stepper motors (19)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (3)
Damper Damper (2)
Shaft modification Shaft modification (1)

Technical Data

  • NEMA 17
  • Current per Winding 0.22 A
  • Holding Torque Bipolar 30 oz-in
  • Resistance per Winding 75 Ohm
  • Resolution 1.8 °/step
  • Weight 0.44 lb
  • Size 1.7 in
  • Holding Torque Unipolar 21.2 oz-in
  • Rotor Inertia 38 gcm²
  • Inductance per Winding 53 mH
  • Length "A" 1.2 in

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]4060801002004006008001 0002 00000.0600.120.180.24
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 97.50 rpm
0.22A 24V one winding


 0.129
0.22A 48V one winding


 0.187
0.16A 24V series


 0.0982
0.16A 48V series


 0.2

Downloads

CAD
Datasheets
Conformity

Accessories

ZD-D40 Damper
ZD-DF40 Damper € 9.50
ZK-JST-VL-6 Extension cable 2m
