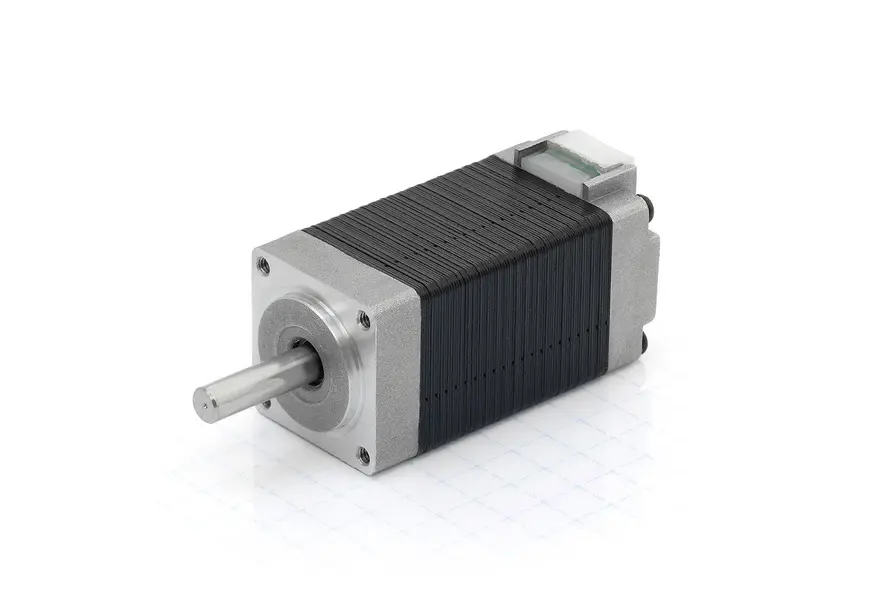

ST2018S0604-B –  Stepper motor – NEMA 8

Cadenas

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (6)
Encoders for BLDC motors and stepper motors Encoders for BLDC motors and stepper motors (3)
Shaft modification Shaft modification (1)

Technical Data

  • NEMA 8
  • Current per Winding 0.6 A
  • Holding Torque 2.5 oz-in
  • Resistance per Winding 6.5 Ohm
  • Resolution 1.8 °/step
  • Weight 0.13 lb
  • Size 0.79 in
  • Holding Torque 2.5 oz-in
  • Rotor Inertia 2 gcm²
  • Inductance per Winding 1.7 mH
  • Length "A" 1.3 in

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]10204060801002004006008001 0002 0004 00000.00400.00800.0120.016
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 201.00 rpm
0.6A 12V


 0.014
0.6A 24V


 0.014
0.6A 48V


 0.012

Downloads

CAD
Datasheets
Conformity

Accessories

ZK-JST-VL-4 Extension cable 2m
