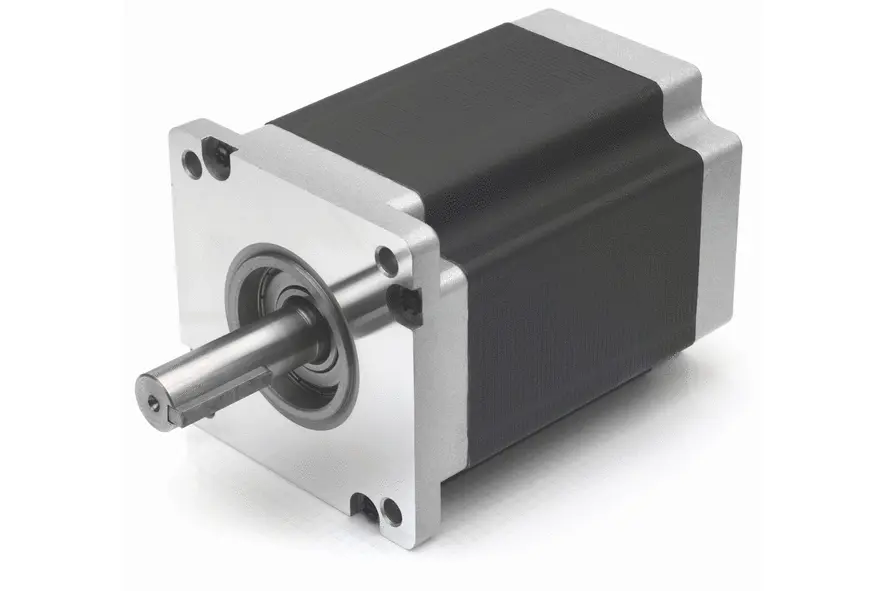

ST11018M6504-B –  Stepper motor – NEMA 42

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.

Technical Data

  • NEMA 42
  • Current per Winding 6.5 A
  • Rotor Inertia 10900 gcm²
  • Inductance per Winding 15.2 mH
  • Length "A" 5.9 in
  • Shaft Keyway with key
  • Size 4.3 in
  • Holding Torque 2973.85 oz-in
  • Resistance per Winding 1.15 Ohm
  • Resolution 1.8 °/step
  • Weight 18.5 lb

Dimensions


Torque Curves

Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]40506070809010020030040050060070080090003.006.009.0012
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 78.75 rpm
6.5A 24V


4.98
6.5A 48V


10.39
