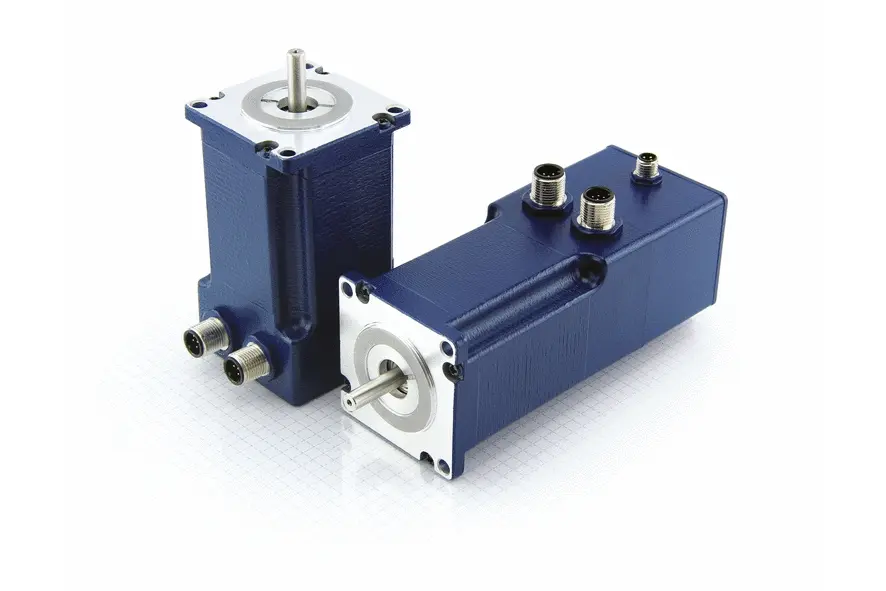

AS5918S2804 –  Stepper motor with M12 connector IP65 – NEMA 23

Cadenas

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (92)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)
Shaft modification Shaft modification (2)

Technical Data

  • Size 2.2 in
  • IP-Protection Motor (Except Shaft Output) IP65
  • Holding Torque 140.2 oz-in
  • Inductance per Winding 2.6 mH
  • Length "A" 2.9 in
  • Brake
  • NEMA 23
  • Current per Winding 2.83 A
  • Resistance per Winding 0.75 Ohm
  • Rotor Inertia 230 gcm²
  • Weight 1.8 lb
  • Encoder

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]4050607080901002003004005006007008009001 0002 00000.250.500.751.00
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 228.75 rpm
2.8A 24V


 0.941
2.8A 48V


 0.918

Downloads

CAD
Datasheets
Conformity

Accessories

ZK-M12-5-5M-1-AFF Motor cable straight, 5m
ZK-M12-5-5M-2-AFF Motor cable angled, 5m
ZK-M12-5-2M-1-AFF Motor cable straight, 2m
ZK-M12-5-2M-2-AFF Motor cable angled, 2m
