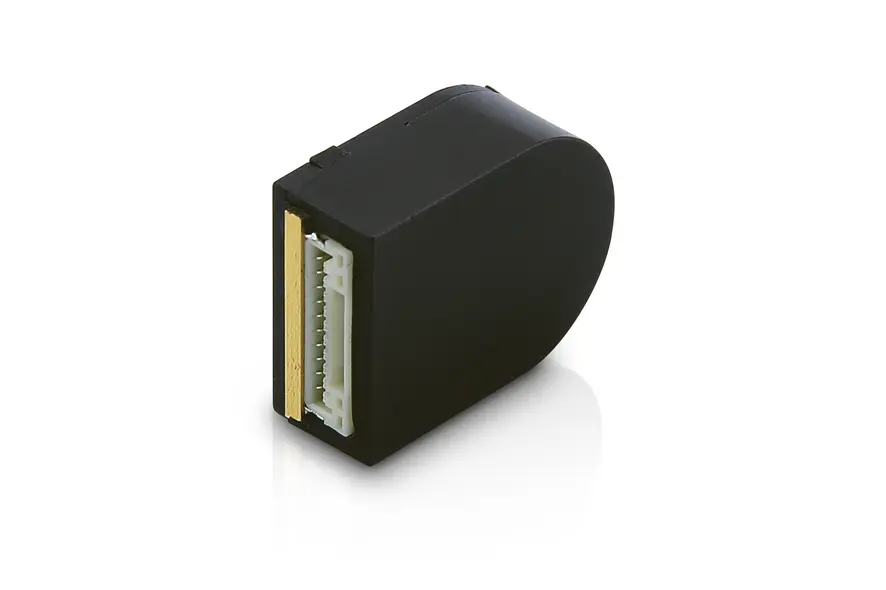

NOE1-05-C14 (5 mm) –  3-channel miniature encoder

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

This article cannot be ordered alone, only as part of a configuration.

Technical Data

• Index
• Encoder Signal Type incremental
• Shaft Diameter
• Output Signals phase A, A\, B, B\, I, I\
• Limit Frequency 240 kHz
• Pulse Width 180 ± 30°e
• Signal Level low:<2.0 V (@l_load=20 mA), high: 3 V (@l_load=20 mA)
• Operating Temperature -20 °C - 85 °C
• Humidity max. 90 % (no condensation)

• Line Driver
• Encoder Resolution 2000 CPR
• Operating Voltage (Encoder) 5 V
• Current Consumption 30 mA
• Limit Speed 6600 RPM
• Phase Shift 90° ± 18°e
• Max. Output Current per Channel 40 mA (@Vcc=5 V, Vout=2.7 V)
• Storage Temperature -40 °C - 85 °C
• Weight

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• NOE1 (stp, 287 KB)

Datasheets

• NOE1 (pdf, 50 KB)

Certificates

• EU-DoC_NOE1
•

Accessories

ZK-NOE-10-500-S-PADP	Encoder cable NOE, 0.5m
ZK-NOE1-10-500-S	Encoder cable NOE, 0.5m
ZK-NOE1-10-2000-S	Encoder cable NOE, 2m
