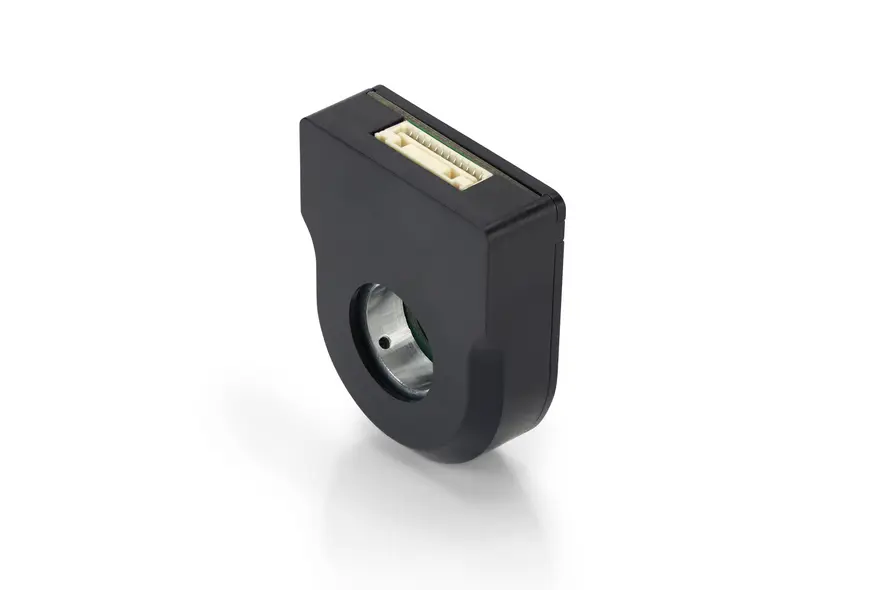

NME2-SSI-V15-12-O –  High-resolution magnetic encoder

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

This article cannot be ordered alone, only as part of a configuration.

Technical Data

• Index
• Encoder Signal Type SSI
• Shaft Diameter
• Output Signals SSI
• Operating Temperature -25 °C - 105 °C
• Humidity max. 95% (no condensation)

• Line Driver
• Encoder Resolution SSI 17 Bit
• Operating Voltage (Encoder) 9.00 – 30.00 V
• Limit Speed 12000 RPM
• Storage Temperature -25 °C - 105 °C

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• ME2-xxx-x15-xx-O (stp, 1 MB)

Datasheets

• NME2 (pdf, 488 KB)

Certificates

• EU-DoC_NME2
•

Accessories

ZK-MCM-12-500-S-JXH	Encoder cable NME2/3 0.5m
ZK-MCM-12-500-S-JPAD	Encoder cable NME2/3 0.5m
ZK-MCM-12-500-S-JGH	Encoder cable NME2/3 0.5m
ZK-MCM-12-2,0-S-JPAD	Encoder cable NME2/3 2.0m
ZK-NME2-12-500-S	Encoder cable NME2/3 0.5m
