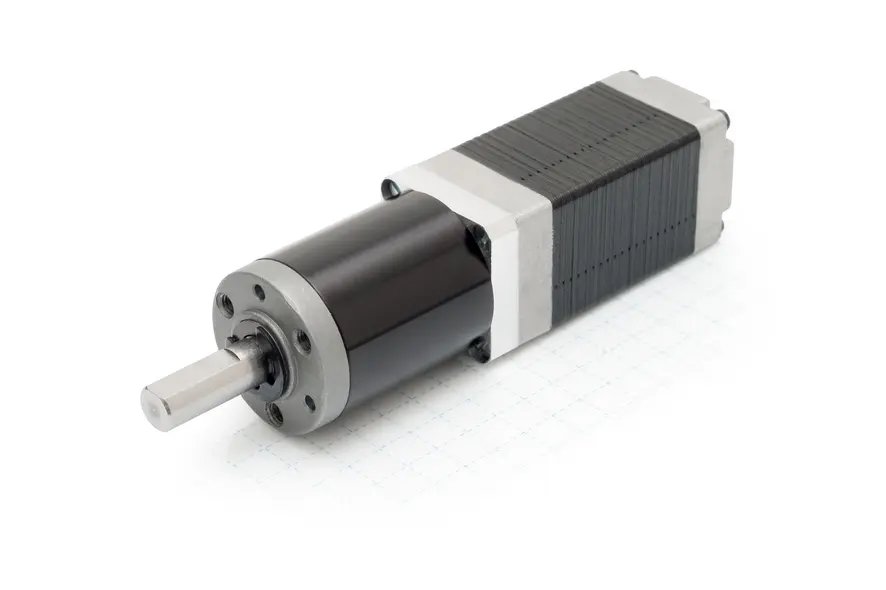

GPLL22-25 –  Economy planetary gearboxes

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

This article cannot be ordered alone, only as part of a configuration.

Technical Data

• Reduction Ratio 25.2
• Max. Output Torque 0.9 Nm
• Max. Backlash 150 ´(arc minutes)
• Flange Length L1
• Service Life 1000 h
• Operating Temperature -10 to +80 °C
• Admissible Axial Shaft Load 7 N

• Rated Output Torque 0.3 Nm
• Efficiency 70 %
• Length "L"
• Weight
• For Motor Size NEMA 8, NEMA 11
• Max. Input Speed 9000 rpm
• Admissible Radial Shaft Load 10 N

---

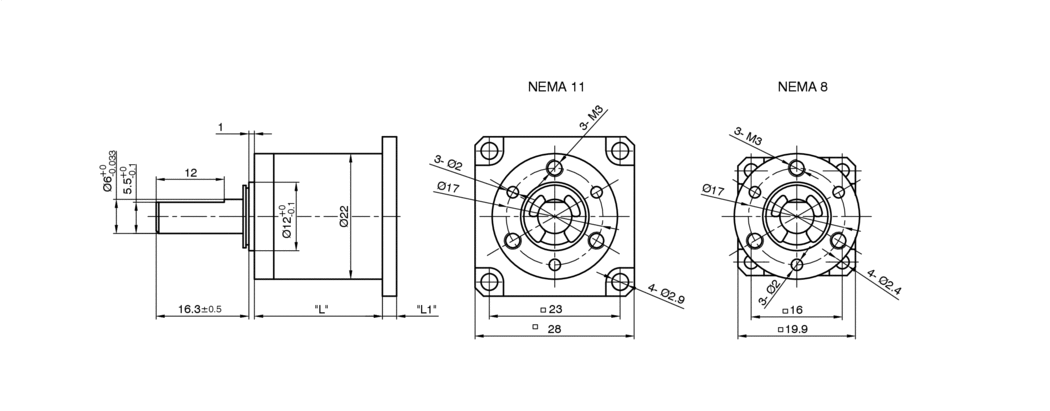

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• GPLL22-25 Nema 8 (stp, 135 KB)
• GPLL22-25 Nema 11 (stp, 124 KB)

Datasheets

• GPLL22 (pdf, 205 KB)

Certificates

• EU-DoC_GPLL22
•
