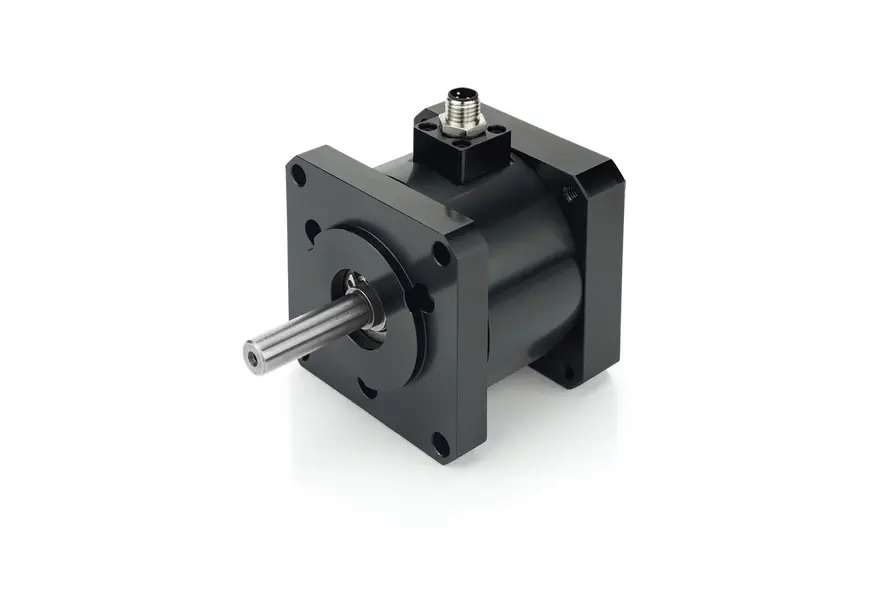

BRAKE-BCD56-1,5-8 –  Spring-loaded brakes

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

The BCD brakes can only be ordered with a motor.

Add to cart

BRAKE-BCD56-1,5-8 was added to your basket.

---

Accessories

ZK-M8-3-2M-1-AFF

Brake cable straight 2m

Close Checkout/Review/Share

Technical Data

• Operating Voltage (Brake) 24 VDC
• Holding Torque (Brake) 150 Ncm
• Size 57 mm
• Hub clamping connection
• Connection connector M8
• Switch-On Time 60 ms

• Rated Power 7.2 W
• Shaft Diameter 8 mm
• Moment of Inertia 4.63 kg mm²
• Fastening with 4 M4 screws
• Switch-Off Time 20 ms
• Weight 0.53 kg

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• BRAKE-BCD56-1,5-8 (stp, 436 KB)

Datasheets

• BRAKE-BCD56-1,5-8 (pdf, 205 KB)

Conformity

• EU-DoC_BRAKE-BCDxx
•
