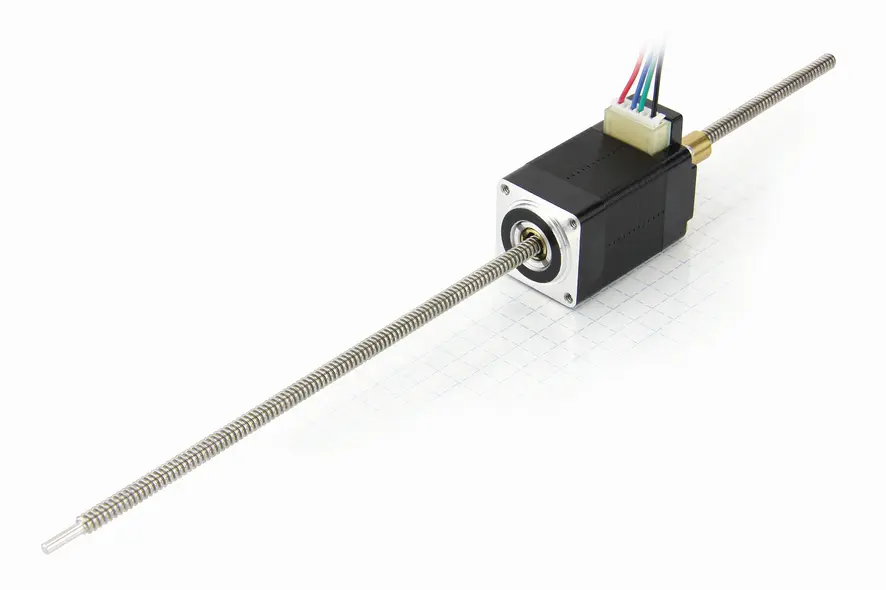

LA201S06-B-UEAI –  Non-captive linear actuator – NEMA 8

nema 8 non-captive linear stepper actuator
Cadenas

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Encoders for BLDC motors and stepper motors Encoders for BLDC motors and stepper motors (1)

Technical Data

  • Size 0.79 in
  • Shaft end Double
  • Peak Force 63 N
  • Current per Winding 0.6 A
  • Thread Diameter 0.1378 in
  • Resolution 1.5 µm/step
  • Inductance per Winding 2.4 mH
  • Max. Axial Play ±0.03 mm
  • Weight 0.11 lb
  • NEMA 8
  • Rated Force 3 N
  • Speed 5.1 mm/s
  • Thread Type ACME
  • Thread Lead 0.011808 in
  • Resistance per Winding 6.4 Ohm
  • Socket Length "L" 0.31 in
  • Length "A" 1.3 in

Dimensions

Force-Velocity Curve

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [mm/s]Force [N]Recommended Load Limit : 50N0.100.200.300.400.500.600.700.800.901.002.003.004.005.004248546066
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Force
Output power
Recommended load limit
Force [N] at 0.52 mm/s
0.6A 24V



 61.58
  • Rated Force
  • Peak Force
  • Recommended Load Limit

Downloads

CAD
Datasheets
Conformity

Accessories

NANOLUBE-50G Bearing grease
SCREW-AAA-UEAI-500 Lead screws with ACME thread
SCREW-ABA-UEAI-300 Lead screws with ACME thread
SCREW-ABA-UEAI-200 Lead screws with ACME thread
