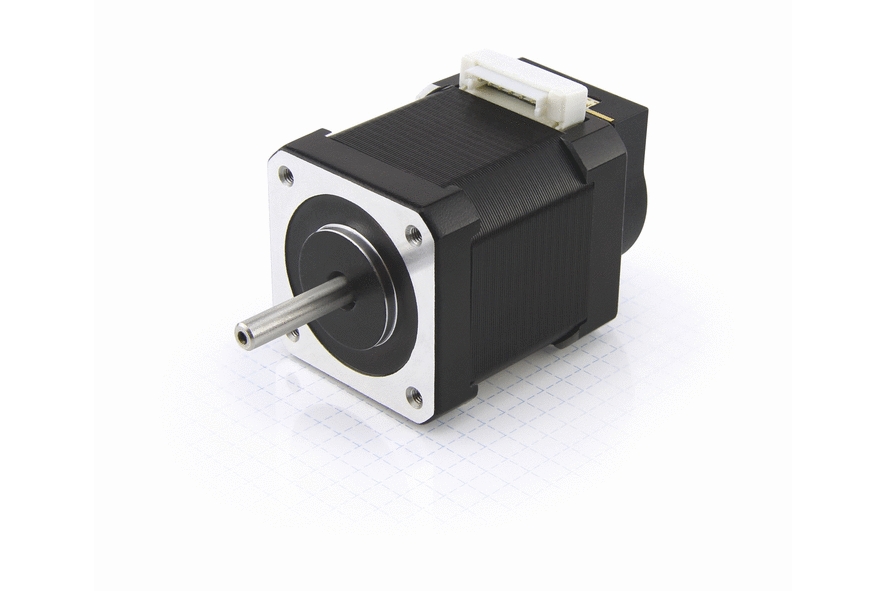

SC4118L1804-ENO05K – Stepper motor – NEMA 17
Volume Discount
For quantities greater than 10, please contact us for volume pricing.
Availability
Add to cart
SC4118L1804-ENO05K was added to your basket.
Accessories
| ZK-NOE1-10-500-S | Encoder cable NOE 0.5m | $19.80 |
|
| ZK-NOE1-10-2000-S | Encoder cable NOE 2m | $22.90 |
|
| ZK-JST-EHR-6-0.5M-S | Motor cable 0.5m |
|
Please click on „Combine Article” or the plus sign to start the configurator.
Technical Data
-
NEMA 17
-
Current per Winding 1.8 A
-
Rotor Inertia 82 gcm²
-
Inductance per Winding 3.3 mH
-
Encoder Type incremental
-
Encoder Resolution 4000 CPR
-
Length "A" 2.4 in
-
Shaft D-shaft
-
Size 1.7 in
-
Holding Torque 70.8 oz-in
-
Resistance per Winding 1.75 Ohm
-
Encoder
-
Encoder Voltage 5 V
-
Resolution 1.8 °/step
-
Weight 0.75 lb
Dimensions
Torque Curves
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque
|
Output power
|
Torque [Nm] at 251.00 rpm
|
||
|---|---|---|---|---|
| 1.8A 12V | 0.382 | |||
| 1.8A 24V | 0.513 | |||
| 1.8A 48V | 0.51 | |||
|
|
||||
