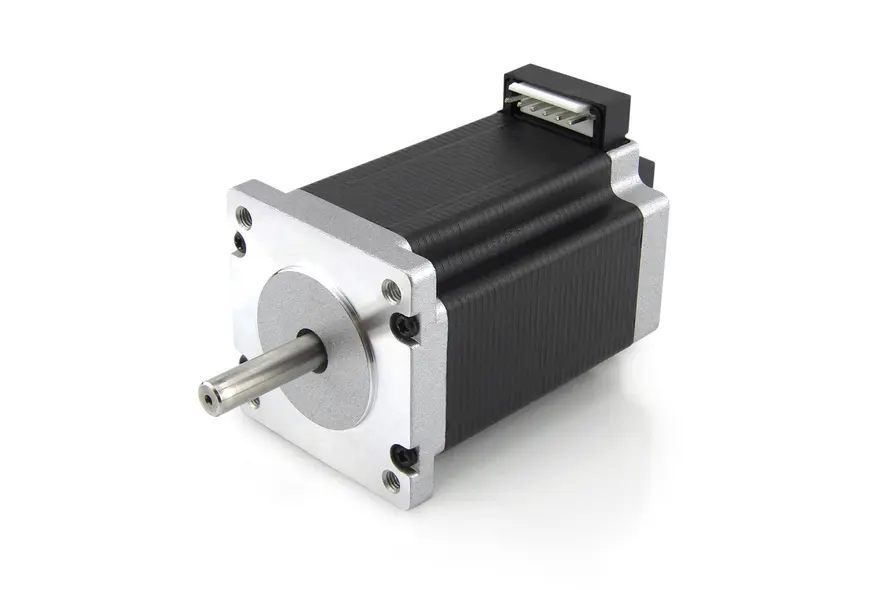

SC6018L4204-ENO05K –  Stepper motor – NEMA 24

Cadenas

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (92)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)

Technical Data

  • NEMA 24
  • Current per Winding 4.2 A
  • Rotor Inertia 840 gcm²
  • Inductance per Winding 3.2 mH
  • Encoder Type incremental
  • Encoder Resolution 4000 CPR
  • Length "A" 3.5 in
  • Shaft D-shaft
  • Size 2.4 in
  • Holding Torque 501.31 oz-in
  • Resistance per Winding 0.65 Ohm
  • Encoder
  • Encoder Voltage 5 V
  • Resolution 1.8 °/step
  • Weight 3.1 lb

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]50607080901002003004005006007008009001 00000.801.602.403.20
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 124.46 rpm
4.2A 24V


 2.57
4.2A 48V


 2.81

Downloads

CAD
Datasheets
Conformity

Accessories

ZK-NOE1-10-500-S Encoder cable NOE 0.5m
ZK-NOE1-10-2000-S Encoder cable NOE 2m
ZK-JST-VHR-6N-0.5M-S Motor cable SC60 0.5m
