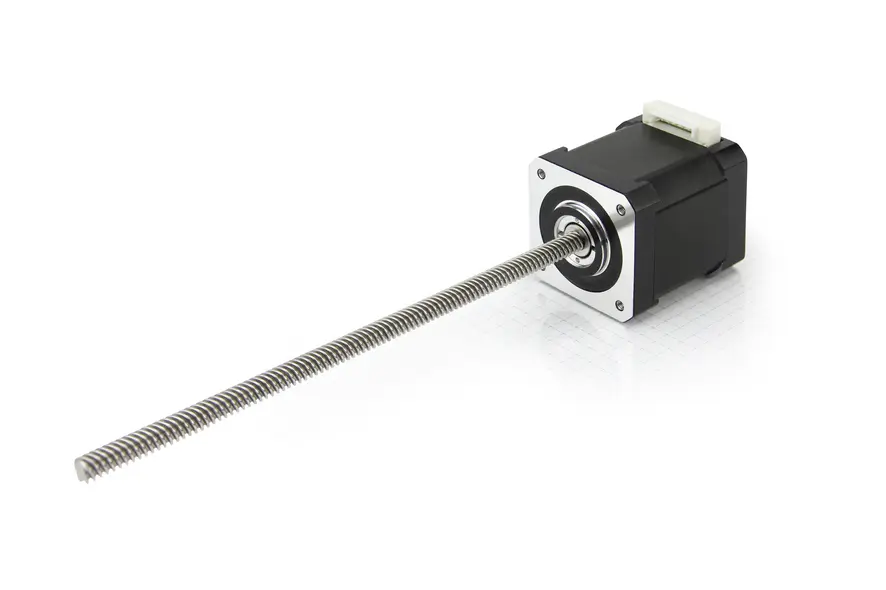

LSA421L18-B-TJCA-152 – External linear actuator – NEMA 17
Volume Discount
For quantities greater than 10, please contact us for volume pricing.
Availability
Add to cart
LSA421L18-B-TJCA-152 was added to your basket.
Accessories
| ZK-JST-EHR-6-0.5M-S | Motor cable 0.5m | $16.50 |
|
| NANOLUBE-50G | Bearing grease |
|
|
| LSNUT-AGAE-TJCA | Anti-backlash threaded nut with torsion spring |
|
|
| LSNUT-AFAE-TJCA | Radial anti-backlash threaded nut with helical spring |
|
|
| LSNUT-AAAE-TJCA | Threaded nut |
|
|
| LSNUT-AEAE-TJCA | Axial anti-backlash threaded nut with helical spring |
|
Please click on „Combine Article” or the plus sign to start the configurator.
Technical Data
-
Size 1.7 in
-
Shaft end Double
-
Speed 50 mm/s
-
Thread Diameter 0.2362 in
-
Resolution 10 µm/step
-
Inductance per Winding 3.4 mH
-
Screw Length "L" 6 in
-
Weight 0.88 lb
-
NEMA 17
-
Peak Force 369 N
-
Current per Winding 1.8 A
-
Thread Lead 0.07872 in
-
Resistance per Winding 1.75 Ohm
-
Max. Axial Play ±0.06 mm
-
Length "A" 1.9 in
-
Screw Coating

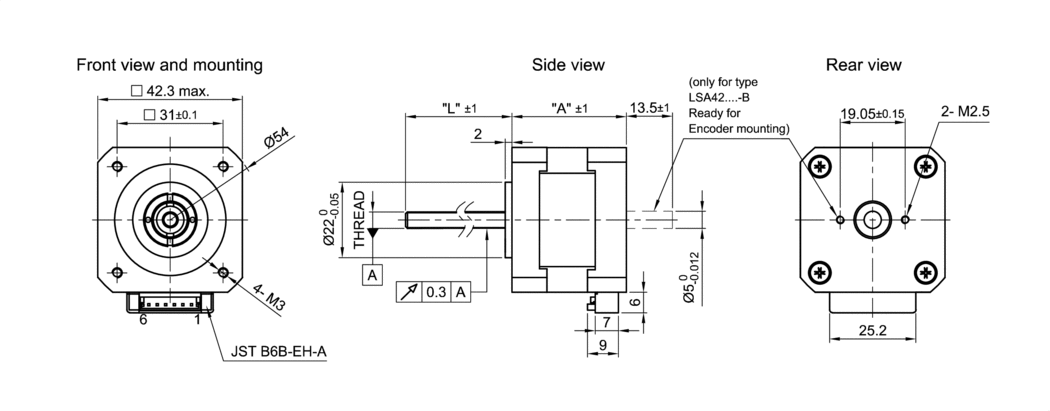

Dimensions
Force-Velocity Curve
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Force
|
Output power
|
Recommended load limit
|
Force [N] at 5.15 mm/s
|
||
|---|---|---|---|---|---|
| 1.8A 24V |
|
347.94 | |||
|
|
|||||
|
|||||
