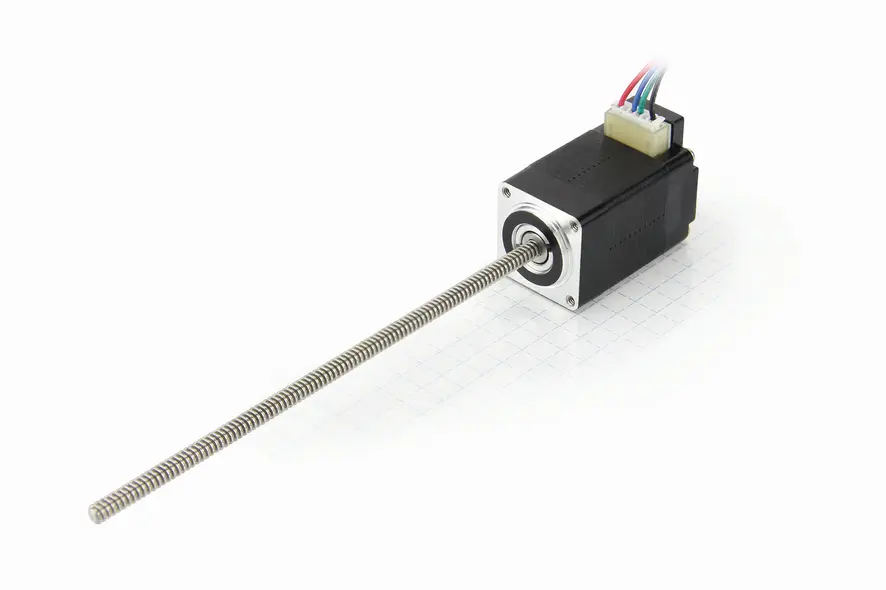

LSA201S06-A-TDBA-102 –  External linear actuator – NEMA 8

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

The motor cable is included in the scope of delivery.

Technical Data

  • Size 0.79 in
  • Shaft end Single
  • Speed 40 mm/s
  • Thread Type Trapezoidal
  • Thread Lead 0.03936 in
  • Resistance per Winding 6.4 Ohm
  • Max. Axial Play ±0.05 mm
  • Length "A" 1.3 in
  • NEMA
  • Peak Force 46 N
  • Current per Winding 0.6 A
  • Thread Diameter 0.1378 in
  • Resolution 5 µm/step
  • Inductance per Winding 2.6 mH
  • Screw Length "L" 4 in
  • Weight 0.12 lb

Dimensions


Force-Velocity Curve

Created with Highcharts 9.3.3Speed [mm/s]Force [N]Recommended Load Limit : 50N1.002.003.004.005.006.007.008.009.00102030402030405060
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Force
Output power
Recommended load limit
Force [N] at 4.10 mm/s
0.6A 24V



46
  • Rated Force
  • Peak Force
  • Recommended Load Limit

Accessories

LSNUT-AGAC-TDBA Anti-backlash threaded nut with torsion spring
LSNUT-AAAA-TDBA Threaded nut
LSNUT-AEAC-TDBA Axial anti-backlash threaded nut with helical spring
NANOLUBE-50G Bearing grease
