ST11018S5504-A – Stepper motor – NEMA 42
Volume Discount
For quantities greater than 10, please contact us for volume pricing.
Availability
Add to cart
ST11018S5504-A was added to your basket.
Please click on „Combine Article” or the plus sign to start the configurator.
Technical Data
-
NEMA 42
-
Current per Winding 5.5 A
-
Rotor Inertia 5500 gcm²
-
Inductance per Winding 9.8 mH
-
Length "A" 3.9 in
-
Shaft Keyway with key
-
Size 4.3 in
-
Holding Torque 1656.86 oz-in
-
Resistance per Winding 0.7 Ohm
-
Resolution 1.8 °/step
-
Weight 11 lb

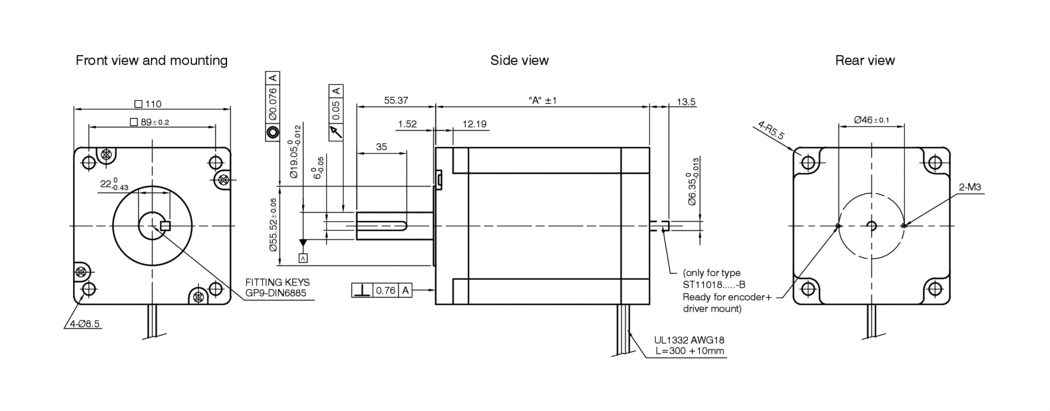

Dimensions
Torque Curves
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque
|
Output power
|
Torque [Nm] at 70.50 rpm
|
||
|---|---|---|---|---|
| 5.5A 24V | 5.9 | |||
| 5.5A 48V | 7.47 | |||
|
|
||||
