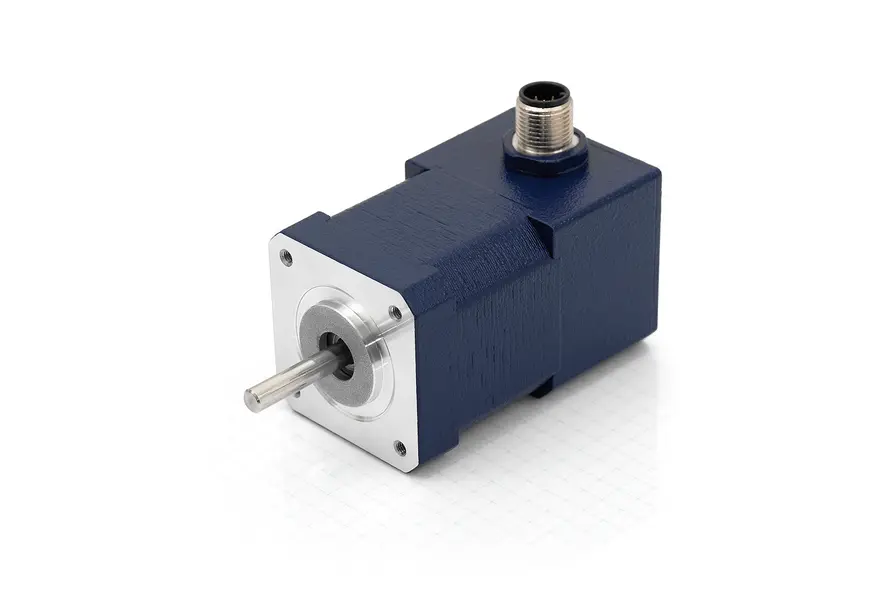

AS4118L1804-ENM24 –  Stepper motor with M12 connector IP65 – NEMA 17

Cadenas

Single Price

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

  • More stock available soon.
Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (50)
Shaft modification Shaft modification (1)

Technical Data

  • Size
  • IP-Protection Motor (Except Shaft Output) IP65
  • Holding Torque
  • Inductance per Winding 3.3 mH
  • Length "A"
  • Brake
  • Encoder Type incremental
  • Operating Voltage (Encoder) 24 V
  • NEMA 17
  • Current per Winding 1.8 A
  • Resistance per Winding 1.75 Ohm
  • Rotor Inertia 82 gcm²
  • Weight
  • Encoder
  • Encoder Resolution 1024 CPR

Dimensions

AS4118L1804
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous Operation
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Conformity

Accessories

ZK-M12-5-5M-1-AFF Motor cable straight, 5m
ZK-M12-5-5M-2-AFF Motor cable angled, 5m
ZK-M12-5-2M-1-AFF Motor cable straight, 2m
ZK-M12-5-2M-2-AFF Motor cable angled, 2m
ZK-M12-8-2M-1-AFF Encoder cable straight, 2m
ZK-M12-8-2M-2-AFF Encoder cable angled, 2m
ZK-M12-8-5M-1-AFF Encoder cable straight, 5m
ZK-M12-8-5M-2-AFF Encoder cable angled, 5m
ZK-M12-8-2M-2-PADP Encoder cable angled, 2m
