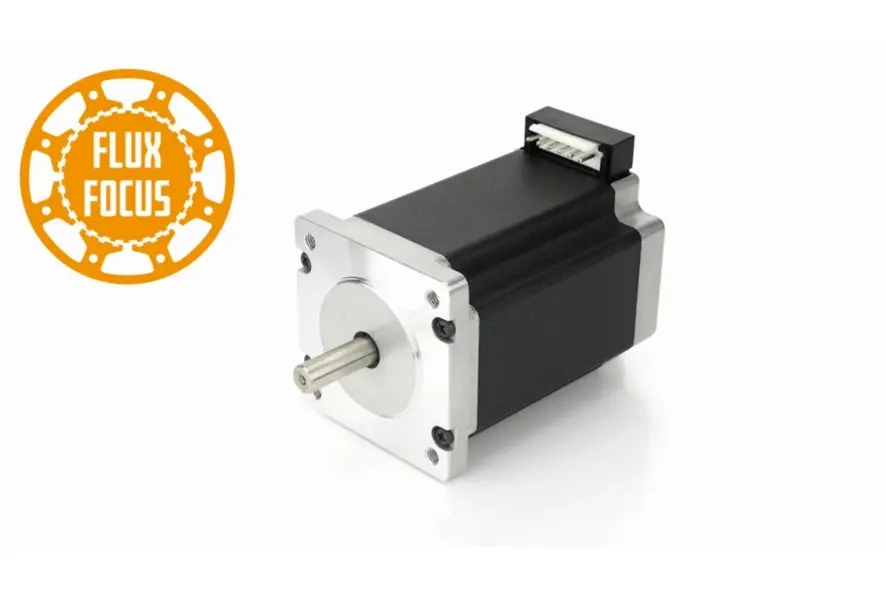

SCB6018L4204-B –  Stepper motor with FluxFocus technology – NEMA 24

Cadenas

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (61)
Encoders for BLDC motors and stepper motors Encoders for BLDC motors and stepper motors (19)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (2)

Technical Data

  • NEMA 24
  • Current per Winding 4.2 A
  • Rotor Inertia 840 gcm²
  • Inductance per Winding 2.4 mH
  • Length "A" 88 mm
  • Shaft end double
  • Shaft D-shaft
  • Size 60 mm
  • Holding Torque 360 Ncm
  • Resistance per Winding 0.72 Ohm
  • Resolution 1.8 °/step
  • Weight 1.4 kg
  • Shaft Diameter 8 mm

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]1.002.004.006.008.0010204060801002004006008001 0002 0004 00001.002.003.004.00
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 199.40 rpm
4.2A 24V


 2.91
4.2A 48V


 3.54

Downloads

CAD
Datasheets
Conformity

Accessories

ZK-VHR-6-300-4 Motor cable SCA56, SCB56, SCB60, LA56, LSA56, 0.3m
