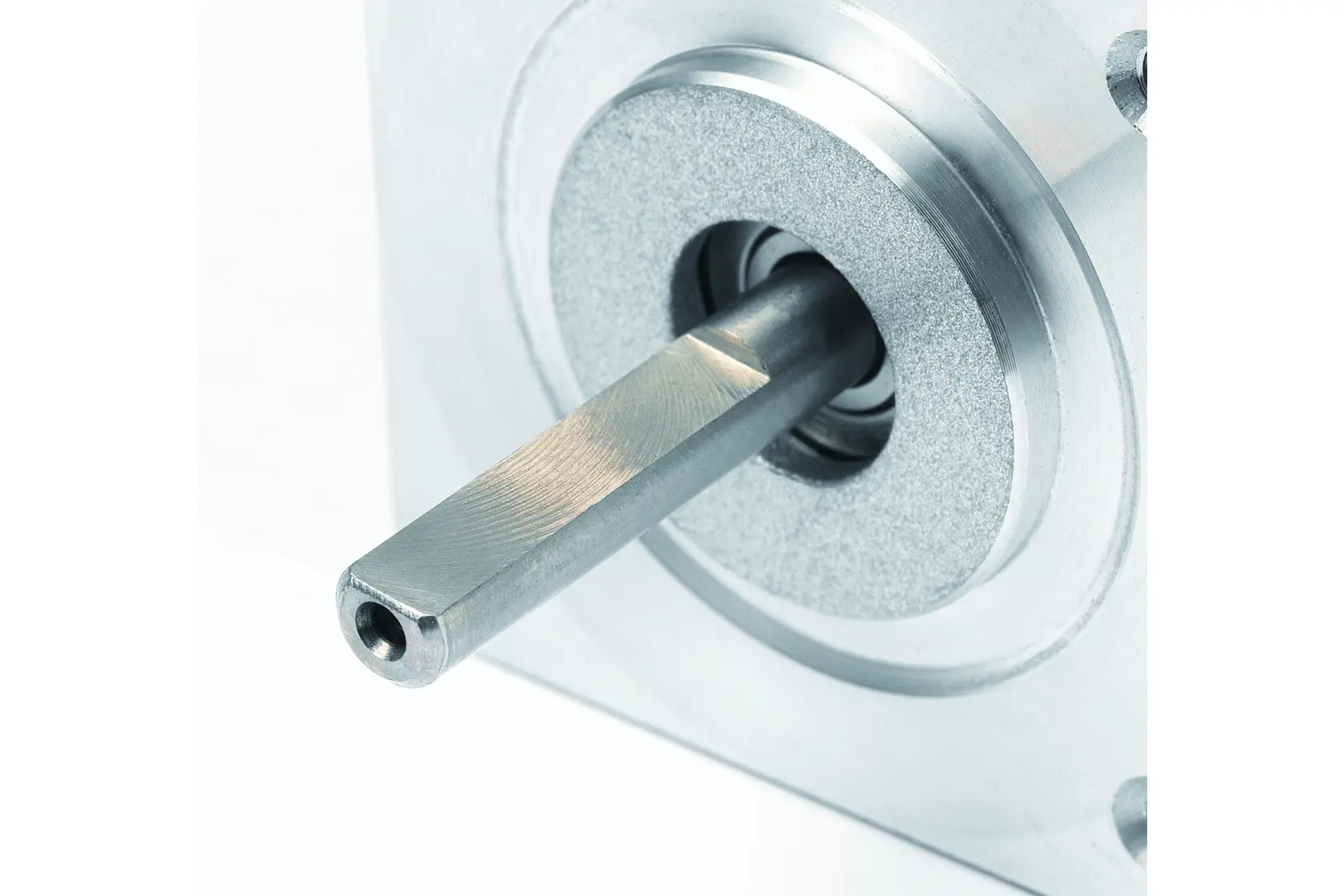

Shaft modification

Shaft modification

Adapted, ready-to-install shaft versions often lead to a rapid and cost-effective solution by doing away with an internal production step. This makes it possible to deliver the motor directly to your production line (just-in-time or Kanban, etc.) without requiring additional processing first. In addition, other special versions such as hollow shaft motors enable applications that cannot be solved with a standard stepper motor.

Depending on the complexity of the machine setting, we offer machining and installation from 1, 25 or more pieces. Not all components listed here are available from us.

Shaft modification  –  Products

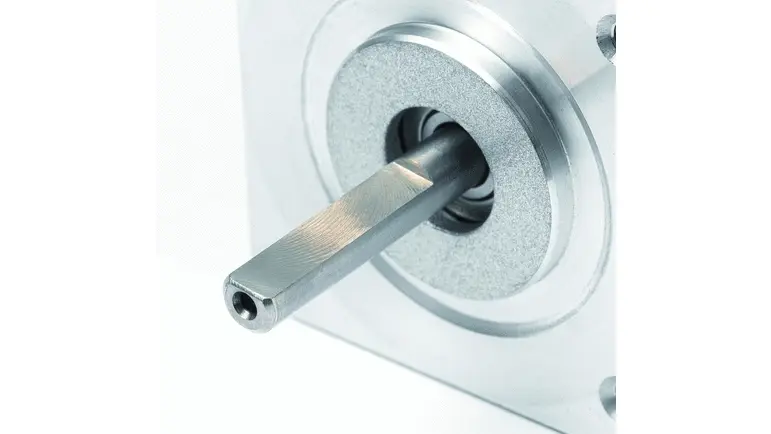

Flat on shaft (D-shaft)

Flat on shaft (D-shaft)

A flat on shaft offers higher rotation prevention than a round shaft, especially when the system is subject to changes in load and direction. This machining is possible for all motors of the ST, PD…
Keyway

Keyway

Shafts with keyway offer increased protection against rotation, especially for applications where the load changes direction. For shaft diameters of 6.35 mm and more, keyways are manufactured…
