PD4-EB59CD-M-65-1A –  Brushless DC servo motor with integrated controller in protection class IP65 – NEMA 23

integrated brushless dc motors nema 23, smart brushless dc motors nema 23
Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure
You can configure this article with others. Please click the configure button below to start.
Wheel drives for robotics Wheel drives for robotics (35)
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (86)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)
Shaft modification Shaft modification (2)

Technical Data

  • Size
  • Fieldbus EtherCAT
  • Operating Voltage 12 VDC - 48 VDC
  • Rated Torque
  • Rated Current (RMS) 6 A
  • Number of Digital Inputs 6
  • Number of Analog Inputs 1
  • Number of Digital Outputs 2
  • Encoder
  • Singleturn Resolution 17 bit
  • Length
  • NEMA 23
  • Interface -
  • Rated Power 220 W
  • Rated Speed 3500 rpm
  • Peak Current (RMS) 18 A
  • Type of Digital Inputs 5/24 V switchable
  • Type of Analog Input 0 - 20 mA / 0 - 10 V switchable
  • Type of Digital Output open-drain (max. 24 V/100 mA)
  • Encoder Type multi-turn absolute
  • Multiturn Resolution 16 bit
  • Weight

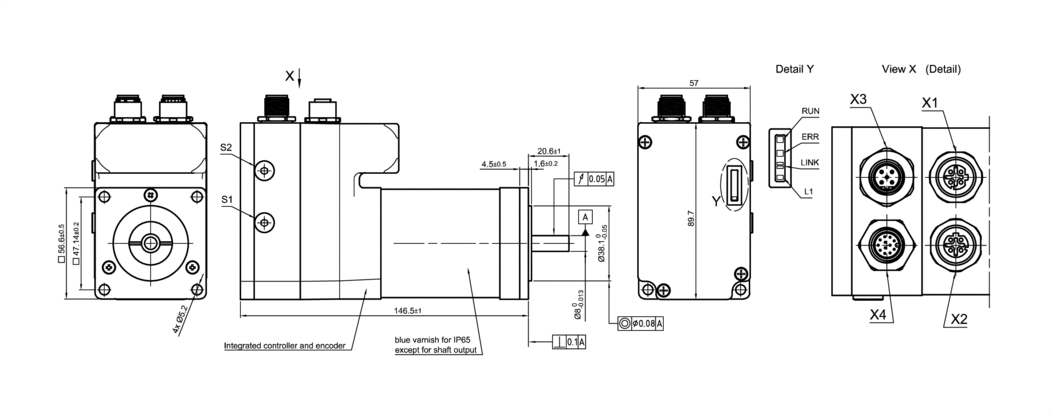

Dimensions

Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
