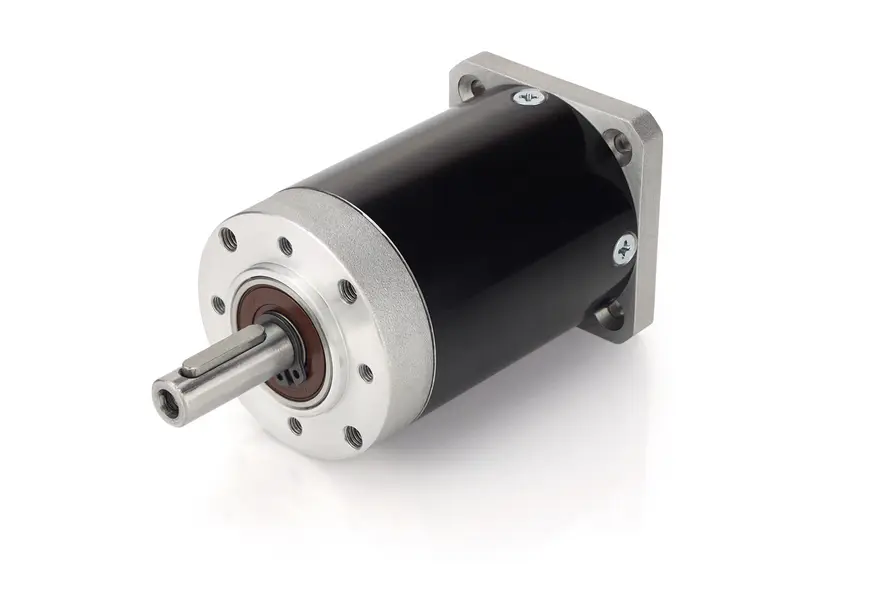

GP42-N2-16-SR –  Low-noise planetary gearboxes

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

The GP42-N gearboxes can only be ordered with a motor.

Technical Data

• For Motor Size 45 mm (BLDC), NEMA 17
• Efficiency 83 %
• Rated Output Torque 3.9 Nm
• Reduction Ratio 15.72
• Moment of Inertia 0.663 kg mm²
• Operating Temperature -10 °C - 50 °C
• Flange Length L1
• Admissible Axial Shaft Load 860 N
• IP-Protection Gearbox IP54

• Type Standard Bearing
• Max. Backlash 34 ´(arc minutes)
• Max. Output Torque 7.8 Nm
• Max. Input Speed 8500 rpm
• Service Life 5000 h
• Length "L"
• Weight
• Admissible Radial Shaft Load 290 N

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• GP42-N2-XX-SRS (stp, 462 KB)
• GP42-N2-XX-SRR (stp, 335 KB)

Datasheets

• GP42-N2-16-SR (pdf, 260 KB)

Certificates

• EU-DoC_GP42-N.pdf
•
