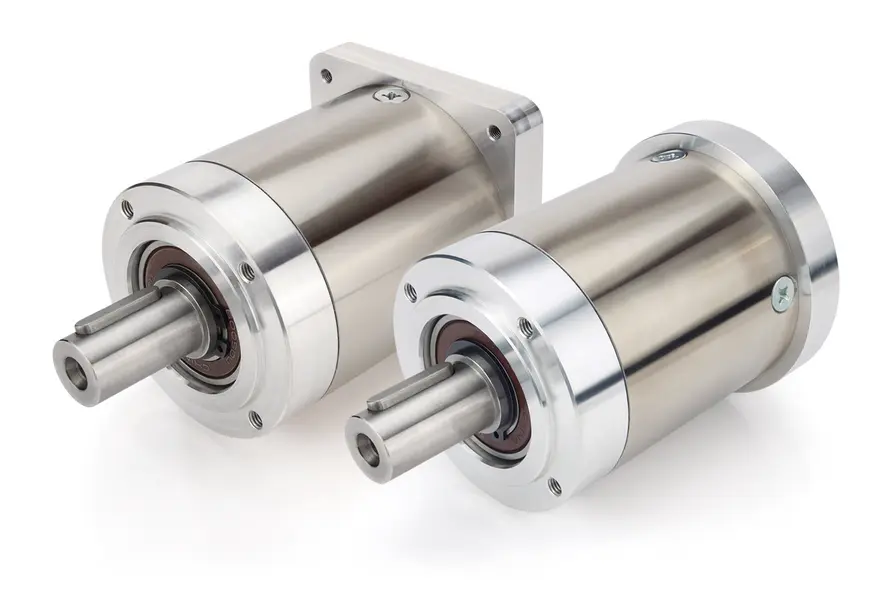

GP80-T2-26-SR –  High-torque planetary gearboxes

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

The GP80 gearboxes can only be ordered with a motor.

Technical Data

• For Motor Size 80 mm (BLDC), 90 mm (BLDC), NEMA 34
• Efficiency 85 %
• Rated Output Torque 47.85 Nm
• Reduction Ratio 26.278
• Moment of Inertia 19.5 kg mm²
• Operating Temperature -15 °C - 90 °C
• Flange Length L1
• Admissible Axial Shaft Load 2950 N
• IP-Protection Gearbox IP54

• Type Standard Bearing
• Max. Backlash 21 ´(arc minutes)
• Max. Output Torque 116 Nm
• Max. Input Speed 5307 rpm
• Service Life 10000 h
• Length "L"
• Weight
• Admissible Radial Shaft Load 970 N

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• GP80-T2-XX-SRS80 (stp, 598 KB)
• GP80-T2-XX-SRS87 (stp, 544 KB)
• GP80-T2-XX-SRR90 (stp, 621 KB)

Datasheets

• GP80-T2-x-SR (pdf, 264 KB)

Certificates

• EU-DoC_GP80.pdf
•
