PD1-C281S15-E-20-2 –  Stepper motor with integrated controller – NEMA 11

PD1-C28 stepper motor, Nanotec's smallest smart servo, available in various versions rated IP20, IP65 and with open housing for customization.
Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure
You can configure this article with others. Please click the configure button below to start.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (6)
Shaft modification Shaft modification (1)

Technical Data

  • IP-Protection Motor (Except Shaft Output) IP20
  • NEMA 11
  • Interface -
  • Operating Voltage 12 VDC - 30 VDC
  • Peak Current (RMS) 3 A
  • Type of Digital Inputs 5/24 V switchable
  • Type of Analog Input 0 - 30 V
  • Type of Digital Output push-pull (5/24 V switchable, max. 50mA)
  • Encoder Type single-turn absolute
  • Length
  • Size
  • Fieldbus CANopen
  • Holding Torque
  • Rated Current (RMS) 1.5 A
  • Number of Digital Inputs 3
  • Number of Analog Inputs 1
  • Number of Digital Outputs 2
  • Encoder
  • Encoder Resolution 4096 CPR

Dimensions

PD1-C281x15-E20-x
Creation in progress ...

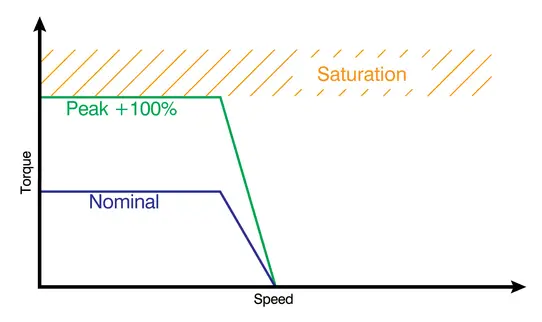

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Manuals
Software
Certificates

Accessories

ZK-MPS-12-0.5M-S IO/COM/PWR PD1-Cxx-20-x 0.5m
