GP42-S3-241-SR –  High-torque planetary gearboxes

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

The GP42 gearboxes can only be ordered with a motor.

Technical Data

• For Motor Size 45 mm (BLDC), NEMA 17
• Efficiency 78 %
• Rated Output Torque 15 Nm
• Reduction Ratio 240.55
• Moment of Inertia 0.43 kg mm²
• Operating Temperature -15 °C - 90 °C
• Flange Length L1
• Admissible Axial Shaft Load 890 N
• IP-Protection Gearbox IP54

• Type Standard Bearing
• Max. Backlash 60 ´(arc minutes)
• Max. Output Torque 30 Nm
• Max. Input Speed 18000 rpm
• Service Life 10000 h
• Length "L"
• Weight
• Admissible Radial Shaft Load 305 N

---

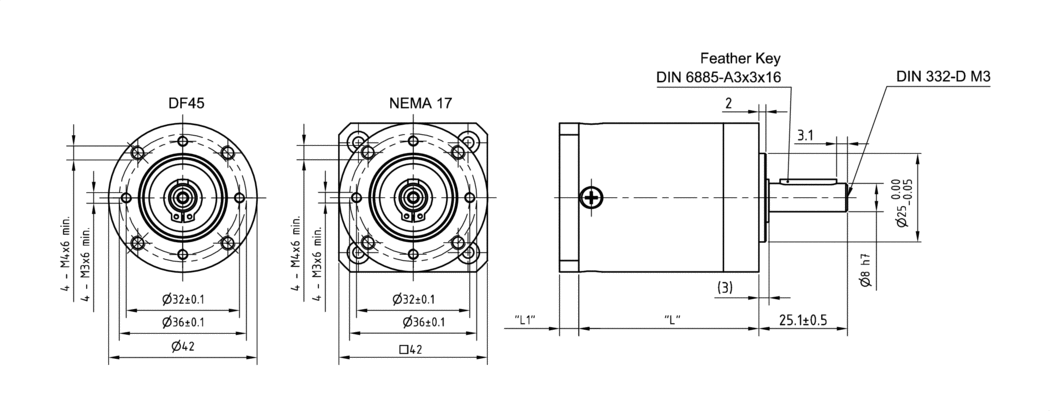

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• GP42-S3-XX-SRS (stp, 531 KB)
• GP42-S3-XX-SRR (stp, 533 KB)

Datasheets

• GP42-S3-x-SR (pdf, 263 KB)

Certificates

• EU-DoC GP42
•
