PD4-C5918X4204-E-08 – Brushless DC servo motor with integrated controller (stepper motor) – NEMA 23
Availability
Add to cart
PD4-C5918X4204-E-08 was added to your basket.
Accessories
| Z-K4700/50 | Capacitor |
|
|
| ZCPHOFK-MC0,5-10 * | Connector |
|
|
| ZCPHOF-MC1,5-2 * | Clip-on Plug, 2-pin, RM 3.5 mm |
|
|
| ZK-PD4-C-CAN-4-500-S | CAN in/out cable 0.5m |
|
Under „Downloads“ you will find the technical manual that corresponds with the stock firmware. Please refer to the new technical manual and the document “Instructions for Firmware Update to Version FIR-v2039” when using Plug & Drive Studio 2.
Please click on „Combine Article” or the plus sign to start the configurator.
Technical Data
-
Size 56 mm
-
Fieldbus CANopen
-
Holding Torque 53.7 Ncm
-
Rated Current (RMS) 4.2 A
-
Number of Digital Inputs 4
-
Number of Analog Inputs 1
-
Number of Digital Outputs 2
-
Encoder
-
Encoder Resolution 1024 CPR
-
Weight 0,6
-
NEMA 23
-
Interface -
-
Operating Voltage 12 VDC - 48 VDC
-
Peak Current (RMS) 5.4 A
-
Type of Digital Inputs 5/24 V switchable
-
Type of Analog Input 0 - 10 V
-
Type of Digital Output open-drain (max. 24 V/100 mA)
-
Encoder Type single-turn absolute
-
Length 65 mm

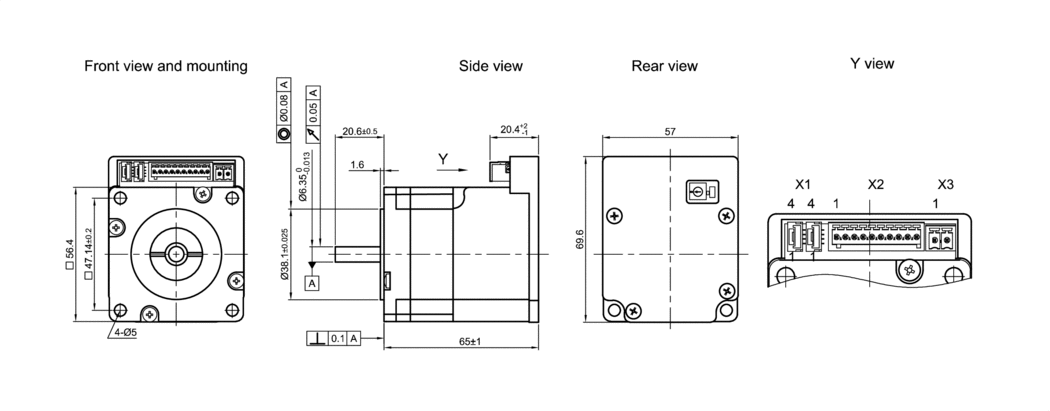

Dimensions
Torque Curves
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque
|
Output power
|
Torque [Nm] at 227.25 rpm
|
||
|---|---|---|---|---|
| 4.2A 48V | 0.455 | |||
| 4.2A 24V | 0.511 | |||
|
|
||||
