PD6-C8918S6404-E-09 – Stepper motor with integrated controller – NEMA 34
Availability
Add to cart
PD6-C8918S6404-E-09 was added to your basket.
Accessories
| ZCPHOFKC-2,5HC-2 * | 2-pin terminal connector |
|
|
| ZCPHOFK-MC0,5-12 * | Connector |
|
|
| ZK-MICROUSB | Micro USB cable 1.5m |
|
|
| Z-K10000/100 | Capacitor |
|
Under „Downloads“ you will find the technical manual that corresponds with the stock firmware. Please refer to the new technical manual and the document “Instructions for Firmware Update to Version FIR-v2039” when using Plug & Drive Studio 2.
Please click on „Combine Article” or the plus sign to start the configurator.
Technical Data
-
Size 86 mm
-
Fieldbus CANopen
-
Holding Torque 360 Ncm
-
Rated Current (RMS) 6.4 A
-
Number of Digital Inputs 6
-
Number of Analog Inputs 2
-
Number of Digital Outputs 2
-
Encoder
-
Encoder Resolution 1024 CPR
-
Weight 1.9 kg
-
NEMA 34
-
Interface USB
-
Operating Voltage 12 VDC - 48 VDC
-
Peak Current (RMS) 8.3 A
-
Type of Digital Inputs 5/24 V switchable
-
Type of Analog Input 0 - 10 V, 0 - 20 mA / 0 - 10 V switchable
-
Type of Digital Output open-drain (max. 24 V/100 mA)
-
Encoder Type single-turn absolute
-
Length 91 mm

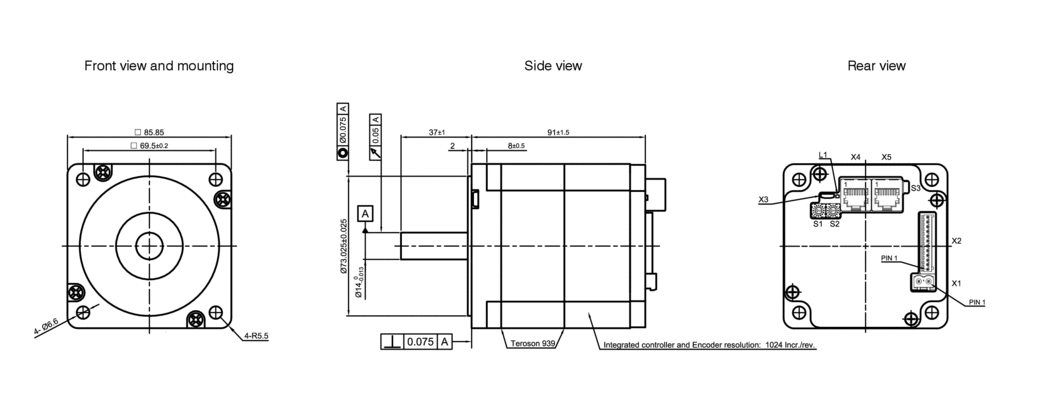

Dimensions
Torque Curves
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque
|
Output power
|
Torque [Nm] at 137.25 rpm
|
||
|---|---|---|---|---|
| 6.37A 24V | 2.95 | |||
| 6.37A 48V | 2.94 | |||
|
|
||||
Downloads
Datasheets
Manuals
- Instructions for Firmware Update to Version FIR-v2039 (pdf, 624 KB)
- PD6-C CANopen/USB Technical Manual (pdf, 5 MB)
- Functional Description Plug & Drive-Interface (pdf, 316 KB)
- PD6-C CANopen/USB Quick Guide (pdf, 431 KB)
- PD6-C CANopen/USB Technical Manual Stock Firmware (pdf, 5 MB)
- PD6-C CANopen/USB Online Manual
Conformity
Accessories
| ZCPHOFKC-2,5HC-2 * | 2-pin terminal connector |
|
|
| ZCPHOFK-MC0,5-12 * | Connector |
|
|
| ZK-MICROUSB | Micro USB cable 1.5m |
|
|
| Z-K10000/100 | Capacitor |
|
