PD6-C8918M9504-E-09 –  Stepper motor with integrated controller – NEMA 34

Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure

Under „Downloads“ you will find the technical manual that corresponds with the stock firmware. Please refer to the new technical manual and the document “Instructions for Firmware Update to Version FIR-v2039” when using Plug & Drive Studio 2.


You can configure this article with others. Please click the configure button below to start.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (48)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)
Shaft modification Shaft modification (2)

Technical Data

  • Size
  • Fieldbus CANopen
  • Holding Torque
  • Rated Current (RMS) 9.5 A
  • Number of Digital Inputs 6
  • Number of Analog Inputs 2
  • Number of Digital Outputs 2
  • Encoder
  • Encoder Resolution 1024 CPR
  • Weight
  • NEMA 34
  • Interface USB
  • Operating Voltage 12 VDC - 48 VDC
  • Peak Current (RMS) 9.7 A
  • Type of Digital Inputs 5/24 V switchable
  • Type of Analog Input 0 - 10 V, 0 - 20 mA / 0 - 10 V switchable
  • Type of Digital Output open-drain (max. 24 V/100 mA)
  • Encoder Type single-turn absolute
  • Length

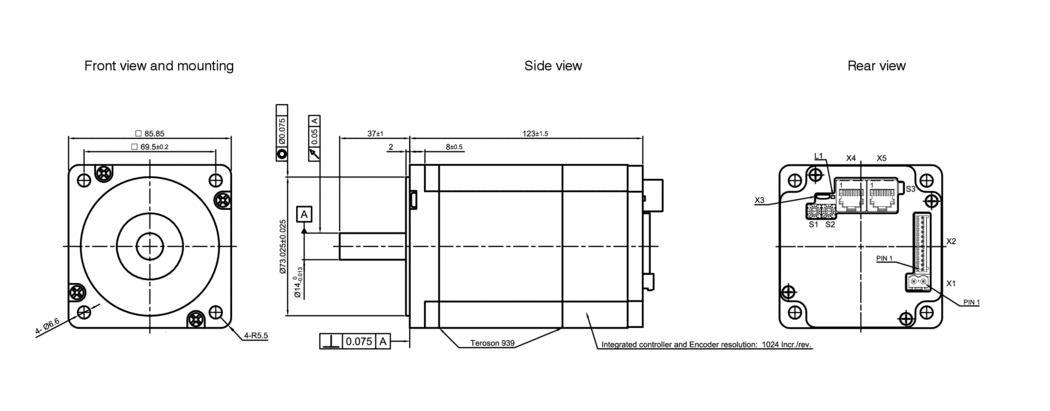

Dimensions

PD6-C8918M9504-E-09
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Manuals
Software
Certificates

Accessories

ZCPHOFKC-2,5HC-2  * 2-pin terminal connector
ZCPHOFK-MC0,5-12  * Connector
ZK-MICROUSB Micro USB cable, 1.5m
Z-K10000/100 Capacitor
* Included in the scope of delivery for PD6-C8918M9504-E-09.

Knowledge Base
This application note shows how to establish communication between Nanotec drives via CANopen. NanoJ programming allows you to realize simple master/slave functionalities, such as synchronizing two drives without a PLC.
More details
The examples and the Application Note show you how the NanoJ Library simplifies the use of the CiA 402 Power State Machine. The functions of the library are contained in a single header file, which you can easily add to your NanoJ project in Plug & Drive Studio.
More details
